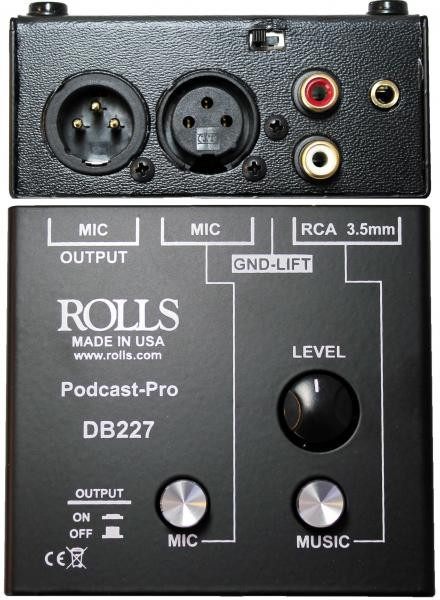

The DB227 Podcast-Pro Microphone/Source mixer was designed to mix a microphone with a source signal either on either RCA or 3.5mm (1/8") to a single XLR output at microphone level. The DB227 consists of two balanced XLR jacks; one female input, one male output, RCA input jacks and a 3.5mm input jack, a level knob for the attenuation of the source inputs of the unit (RCA and 3.5mm only), switches for allowing the input signals to pass thru to the output of the unit and a ground lift switch for grounding the input and outputs sections together to help eliminate ground hum issues.
Mixes one XLR microphone and a source signal to a single XLR microphone level output
Passive unit does not require a power source so it can be used anywhere
Switchable mixing for quick operation
Single source level control for proper attenuation of the source inputs
