EAW-Eastern Acoustic Wrks VFR109i White
10" 2-Way Passive Installation Speaker in White

OUR PART #:  VFR109I-WHITE

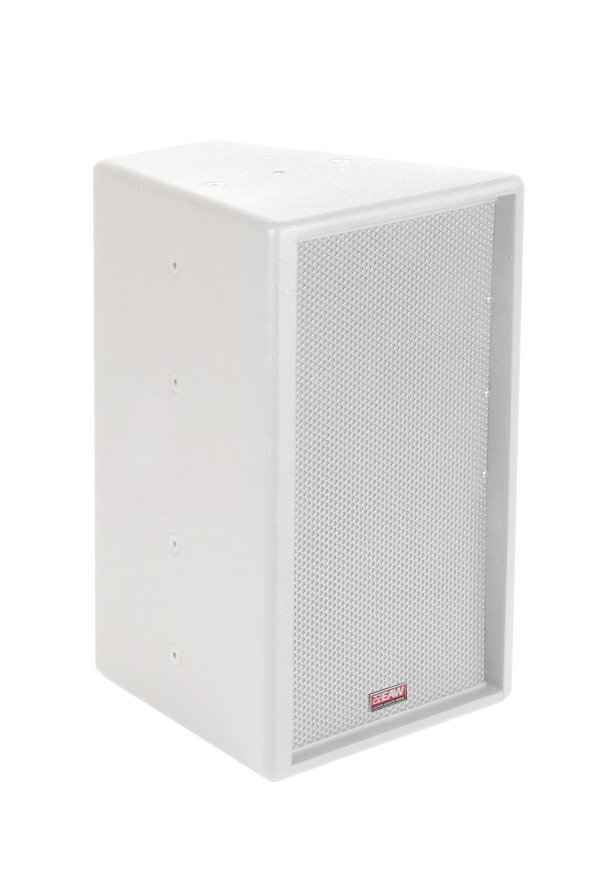

The VFR109I White from Easter Audio Works, is a passive, two-way, full-range system in a white trapezoidal enclosure engineered for permanent installation applications.
Learn More
Our Price: $856.00
Write the first review.
EAW-Eastern Acoustic Wrks VFR109i White
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The VFR109I White from Easter Audio Works, is a passive, two-way, full-range system in a white trapezoidal enclosure engineered for permanent installation applications. It features a 10" LF vented with 1" horn-loaded exit compression driver. It has a 90 degree (H) by 60 degree (V) coverage pattern with a user-rotatable horn, and includes NL4 4-terminal connectors and barrier strip connectors.

EAW VFR109i White Features:

  • Two-way, full range loudspeaker
  • Beamwidth-matching crossover point
  • User-rotatable horn for optimized pattern control
  • Designed for installtion applications

EAW VFR109i White Specifications:

  • Operating Range (-10 dB, Hz): 65 - 20k
  • Axial Sensitivity (1W @ 1m, dB SPL): Full Range Passive: 95
  • Power Handling / Impedance (Watts @ Ohms): Full Range Passive: 500 @ 8
  • Calculated Maximum Output Peak (dB SPL): Full Range Passive: 128
  • Calculated Maximum Output Long Term (dB SPL): Full Range Passive: 122
  • Nominal Coverage (degrees):
    • Horizontal: 90
    • Vertical: 60
  • Subsystems:
    • LF: 1x 10" vented cone
    • HF: 1x 1" exit, 1.75" compression driver, horn-loaded
  • Physical:
    • Dimensions:
      • Height: 19.9" (506mm)
      • Width (front): 12.8" (325mm)
      • Width (rear): 6.1" (156mm)
      • Depth: 13.1" (332mm)
      • Trapezoidal Angle (degrees per side): 15
  • Weight
    • Net: 37 lbs (16.8 kg)
    • Shipping: 48 lbs (21.8 kg)
