Soundsphere Q-8-BLACK Foreground and Background Spherical Ceiling Speaker, Black Finish

OUR PART #: Q-8-BLACK

Copied to clipboard

The Model Q-8 is more robust than the compact Soundsphere loudspeaker models, offering greater sensitivity and power-handling capability. ...Read more

Soundsphere Q-8-BLACK Foreground And Background Spherical Ceiling Speaker, Black Finish Image 1
Soundsphere Q-8-BLACK Foreground And Background Spherical Ceiling Speaker, Black Finish
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Model Q-8 is more robust than the compact Soundsphere loudspeaker models, offering greater sensitivity and power-handling capability. The Q-8 is designed to provide clear voice announcements and high-fidelity foreground and background music for applications such as restaurants, courtrooms, churches, shopping centers and airports.

The Q-8 offers Soundsphere's trademark hemispherical coverage pattern and is distinguished by its high sensitivity (94dB 1W/1m) and high power handling capability (100 watts RMS). The Q-8 is available for either surface or hanging mounts, in both standard and custom colors.

Specifications:

  • Sensitivity 94dB SPL: 1 Watt/1 meter
  • Maximum SPL 114dB 100 Watts/1 meter
  • Power Handling 100 Watts RMS
  • Frequency Response 55Hz to 17kHz ±6dB
  • Coverage
    • 180° vertical
    • 360° horizontal
  • Rated Impedance
    • 8 ohms
  • Weight
    • 22.5 lbs. (10.2 kg)
  • Size
    • Height: 19" (483mm)
    • Sphere Diameter: 16" (406mm)
    • Reflector Diameter: 20" (508mm)
  • Driver Coaxial:
    • 8" LF
    • 1" dome HF
  • Material: Enclosure and reflector are fiberglass with gelcoat finish; rust resistant hardware

Note:

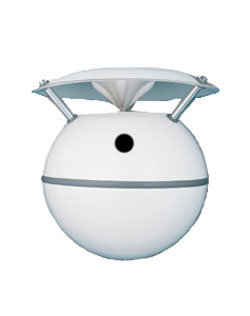

The image shown is for illustrative purposes. Actual color of the speaker is black.
