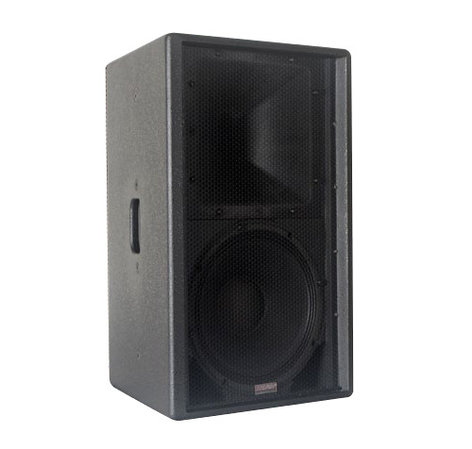

EAW VFR159i 15" 2-Way Full-Range Passive Speaker, Black

OUR PART #: VFR159I-BLACK MFR #: 2041015-90

Copied to clipboard

The VFR159I is a passive, two-way, full range system in a trapezoidal enclosure designed for portable use or permanent installation. ...Read more

EAW VFR159i 15" 2-Way Full-Range Passive Speaker, Black Image 1
EAW VFR159i 15" 2-Way Full-Range Passive Speaker, Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The VFR159I is a passive, two-way, full range system in a trapezoidal enclosure designed for portable use or permanent installation. 15-in LF cone, vented; 1-in exit compression driver, horn-loaded. 90 degree (h) by 60 degree (v) or 90 degree (h) by 50 degree (v) coverage pattern, user-rotatable horn. VFR “i” Series black versions use handles from the KF and JF Series and feature a pole mount cup that accept accessory covers for permanent installation.

Specifications:

  • Operating Range (-10 dB, Hz): 54 -20k
  • Axial Sensitivity (1W @ 1m, dBSPL): Full Range Passive: 98
  • Power Handling / Impedance (Watts @Ohms): Full Range Passive: 600 @ 8
  • Calculated Maximum Output Peak (dBSPL): Full Range Passive: 132
  • Calculated Maximum Output Long Term (dBSPL): Full Range Passive: 126
  • Nominal Coverage (degrees)
    • Horizontal: 90
    • Vertical: 60
  • Subsystems
    • LF: 15-in cone, vented
    • HF: 1-inexit compression driver, horn-loaded
  • Powering
    • Full range
  • Dimensions
    • Height: 28.3"
    • Width(front): 20.1"
    • Width (rear): 10.7"
    • Depth: 18.3"
    • Trap. Angle (degrees per side): 15
  • Weights
    • Net (approx.): 60 Lbs
