Liberty AV Solutions 22-10C-P-WHT

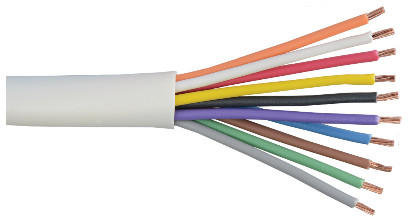

1000 ft. Reel of Commercial-Grade General Purpose 22 AWG 10-Conductor Plenum Cable with White Jacket

OUR PART #:  22-10C-P-WHT

Liberty AV Solution's 22-10C-P-WHT is 10-conductor 22 AWG stranded, twisted, and unshielded cable NEC type CMP and CEC type CMP FT6.
Learn More
Our Price: $859.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions 22-10C-P-WHT
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Liberty AV Solution's 22-10C-P-WHT is 10-conductor 22 AWG stranded, twisted, and unshielded cable NEC type CMP and CEC type CMP FT6.  Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

Features:

  • 7-strand annealed bare copper conductors
  • Plenum rated PVC insulation
  • Twisted, unshielded
  • Plenum rated PVC jacket
  • NEC CMP, CEC CMP FT6, RoHS compliant

Applications:

  • Line Level Audio
  • Security and burgular alarm
  • Infrared (IR), RS-232C signaling
  • Class 2 and Class 3 low voltage power
  • Instrumentation and Control

Specifications:

  • Conductor:
    - 22 AWG
    - 7-strand annealed bare copper conductors
    - Diameter: 0.029" (0.73mm)
  • Electrical:
    - DC resistance: 16.4 ohm / 1000’ | 53.79 ohm/KM
    -Mutual capacitance: 25.7 pF/FT | 84.30 pF/M
    - Impedance: 72 ohm
    -Velocity of Propagation: 55%
    - Voltage rating: 300V
    - Maximumcurrent: 2.0A@25°C
  • Insulation:
    - Plenum rated polyvinyl chloride
    - Wall thickness: 0.008" | 0.20mm
    - Diameter: 0.044" (1.13mm)
  • Regulatory:
    - NEC: CMP 75°C
    - CEC: CMP FT6 60°C
    - EU RoHS 2002/95/EC Compliant
  • Color Code:
    Black, Red, White, Green, Brown, Blue, Orange, Yellow, Violet, Gray
  • Packages:
    - Reel: 1000’ | 305M
    - Weight: 34 Lbs/1000’ | 51 Kg/KM
  • Assembly:
    - 10 conductors twisted
    - Lay length: 5.0" (127mm)
    - 2.4 twists per foot | 7.9 twists per meter
  • Installation:
    - Pull Tension: 52 Lbs | 232 N
    - Bend radius: 1.98" | 51mm unloaded
    - Bend radius: 3.96" | 102mm loaded
    - Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
  • Construct: Ripcord under jacket
  • Applications: Plenum General purpose security and low voltage power
  • Shield: N/A
  • Performance: N/A
  • Jacket:
    - Plenum rated polyvinyl chloride
    - Colors: Natural White
    - Wall thickness: 0.014" (0.36mm)
    - Diameter: 0.198" (5.09mm)
  • Final Outside Diameter: 0.198"
