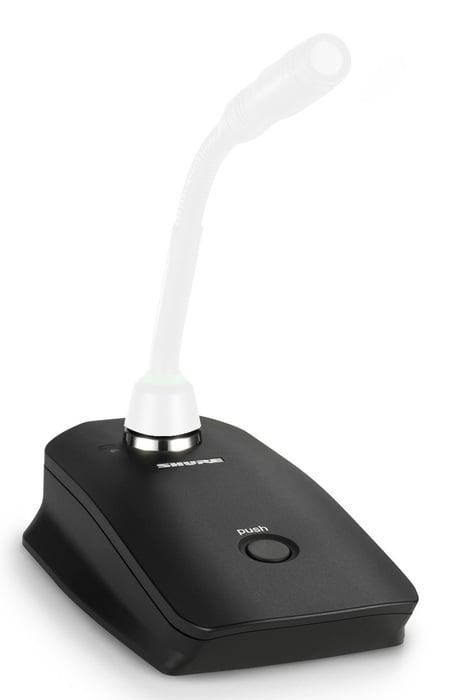

Shure MXW8 Desktop Base Gooseneck Transmitter

The MXW8 is a microflex wireless desktop base transmitter. It accepts 5", 10", and 15" Microflex® Gooseneck Microphones (not included).

Microflex Wireless Transmitters deliver lifelike sound, intelligent wireless performance, advanced rechargeability, and AES 256-bit encryption for secure transmission. Each transmitter offers bi-directional wireless capabilities, enabling return channel audio and real-time remote control and monitoring of all settings, including battery status, plus a 100-foot working range, with an alert that sounds so users know when range is exceeded.

Microflex™ Wireless brings these features to signature boardrooms and AV conferencing environments that require high-quality, low-profile condenser microphones.

Note: see Spec Sheet for compatible gooseneck microphone options, found under Documentation tab below.

Features

• Wide frequency response for clear voice transmission
• Concealed power switch prevents accidental shut off
• Bi-directional wireless enables return channel audio and real-time remote control of all wireless microphone settings
• Earphone output from a return channel for translation, cueing, or program material
• Programmable mute button
• Push-to-talk, push-to-mute, and external control
• Encrypted AES 256-bit wireless encryption for secure wireless transmission
• Reliable wireless coverage extends up to 160 feet (50 meters)
• Out-of-range alert
• Assign the microphone to an access point channel by docking it in a networked charging station and pressing “Link”
• Advanced lithium-ion internal batteries provide up to 9 hours of continuous use, charge fully in 2 hours, and enable remote monitoring
• Standby modeis enabled remotely during periods of inactivity
• Low-battery LED when there are 30 minutes of charge remaining
• USB charging and power source

Specifications

• Gain Adjustment Range - -25 to +15 dB (in 1 dB steps)
• Maximum Input Level (Mic gain @ -16 dB) - -9 dBV
• Headphone Output - 3.5 mm (1/8"), dual mono (will drive stereo phones)
• Maximum Headphone Output Power (1kHz @ 1% distortion, peak power, @16Ω) - 17.5 mW
• Internal Antenna, Spacial Diversity, Linear Polarization
• Battery Type - Rechargeable Li-Ion
• Battery Life - Up to 9 hours
• Charge Connector - USB 3.0 Type A
• Molded Plastic Housing
• Recommended Storage Temperature Range - 0 °C (32 °F) to 25 °C (77 °F)
• Microphone Connector - 6-pin connector for Shure MX405/10/15
• Unbalanced Configuration
• Input Impedance (@ 1 kHz) - >20 kΩ
• Dimensions (H × W × D) 36 mm × 71 mm × 124 mm (1.4 in. × 2.8 in. × 4.9 in.)
• Weight - 193 g (6.8 oz.) with batteries, without microphone
