Yorkville C110 5" 40W Coliseum Speaker

OUR PART #: C110-YORKVILLE MFR #: C110

Copied to clipboard

The Yorkville Coliseum C110 is a high quality, weather resistant speaker, which features specially treated drivers in a rugged ABS plastic enclosure. ...Read more

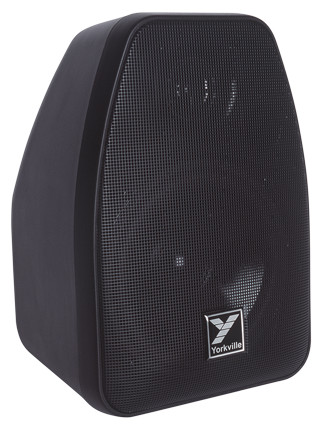

Yorkville C110 5" 40W Coliseum Speaker Image 1
Yorkville C110 5" 40W Coliseum Speaker
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Yorkville Coliseum C110 is a high quality, weather resistant speaker, which features specially treated drivers in a rugged ABS plastic enclosure. It is well suited for many applications including commercial installations, home theaters, home stereos, reference monitors and personal stage monitors. The C110 is a bass reflex enclosure with a tuned port and a 5" woofer whose computer-optimized design gives improved bass performance over conventional 5" woofer enclosures. With a power rating of 40 Watts of continuous music power the C110 is accurate from 85 Hz to 19 kHz with an efficiency of 92 dB.

The C110 features an internal 70V matching transformer, which allows multiple C110's to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (10W, 20W, 30W or off) selected via a rotary switch located on the rear panel of the speaker, allowing convenient adjustment of the relative volumes of multiple interconnected cabinets.

A wide variety of mounting options are available using the four integral screw-slots or the provided metal L-bracket which allows it to be angled up, down or sideways depending on the mounting orientation. The C110 is available in a low-reflectance black or white finish (C110W) with a matching, perforated metal grille and can be painted to match its surroundings.

Yorkville C110 Features:

  • Two-Way Compact 70-volt Installation Loudspeaker
  • 5-inch Woofer / 1-inch Mylar Dome Tweeter
  • Selectable 70-volt or 8-ohm Operation
  • Power Taps at 10, 20 and 30 Watts
  • 40 watts (8-ohm mode)
  • Screw Terminal Input
  • ABS Plastic Cabinet and Metal Grille
  • Mounting L-Bracket Included

Yorkville C110 Specifications:

  • System Type: 2-way, Full Range
  • Active or Passive: Passive
  • Program Power (Watts): 40
  • Nominal Impedance (Ohms): 8
  • Sensitivity (dB @1Watt/1m): 92
  • Frequency Response (Hz +/- 3dB): 85 - 19,000
  • Driver Configuration: Tweeter, 5 inch
  • HF Driver(s): Mylar Tweeter
  • HF Dispersion ( DEG H x DEG V): 90x90
  • LF Driver(s): 5 inch
  • Inputs: 1
  • Inputs - Screw Terminal: 1
  • Other Controls / Features: Internal 70VTransformer with Switchable Taps (10W / 20W / 30W / Off)
  • Flying Hardware: L-Bracket, Rear Key HoleMounts (4)
  • Enclosure Materials: Injection Molded, ABSPlastic
  • Port(s): 1
  • Grille: Perforated Steel
  • Covering / Finish: Low Reflective Black
  • Optional Covering / Finishes: Low ReflectiveWhite
  • Dimensions (DWH xbackW COM inches): 5.5 x6.25 x 8.9
  • Dimensions (DWH xbackW COM cm): 14 x 15.9 x22.6
  • Weight (lbs/kg): 3.8 / 1.7
