JK Audio RM2 2-Channel Broadcast Field Mixer

OUR PART #: RM2-JK MFR #: RM2

Copied to clipboard

RemoteMix 2 is a two-channel field mixer / headphone amplifier built for the remote broadcast environment. ...Read more

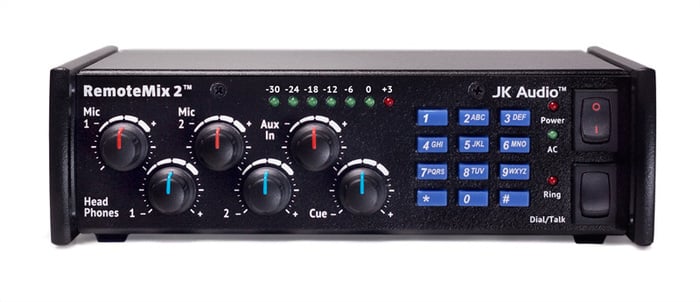

JK Audio RM2 2-Channel Broadcast Field Mixer Image 1
JK Audio RM2 2-Channel Broadcast Field Mixer Image 2
JK Audio RM2 2-Channel Broadcast Field Mixer
Our Price: $892.43
List Price: $895.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

RemoteMix 2 is a two-channel field mixer / headphone amplifier built for the remote broadcast environment. More than just a field mixer, RemoteMix 2 provides a communications interface for remote broadcast, IFB, or a backup audio path. The integrated headphone amplifier provides sidetone to monitor all inputs plus an external feed. RemoteMix 2 features a phone line hybrid with keypad along with a wired notebook/cell phone headset interface. All sections are designed to work together, saving setup time and wiring in the field

TV – RemoteMix 2 Combines a small front-end mixer with two powerful 1/4" headphone outputs. Send and receive interview audio while pulling IFB off the phone line, cell phone, or notebook.

Radio - RemoteMix 2 is perfect for live remotes. Use it as a front-end mixer for your POTS, ISDN, IP or smart phone codec. Use it as a phone line hybrid, calling in to your studio talk show hybrid.

Features:

  • Two XLR mic jacks
  • Two 1/4" headphone jacks with individual level controls.
  • XLR Line Out
  • 3.5 mm Send and Receive jacks
  • LED VU Meter
  • Phone line hybrid with DTMF keypad
  • Wired phone headset interface (2.5 & 3.5 mm interfaces)
  • Dual 9 volt batteries
  • 100-240 VAC External AC Supply
  • Made in USA

Specifications:

  • Inputs:
    • Female XLR Mic In: 2k ohms (-25 dBu nom) Channel 2 has -40 dB Mic/Line pad switch = +16 dBu max. 50k ohms.
    • Line Input: 1/8" (3.5mm) Stereo Line: 20k ohms -10 dBu nom.
    • Headphone Cue In: 1/4", 20k ohms -10 dBu nom.
  • Outputs:
    • Balanced Out: Male XLR +16 dBu max, 20 Hz - 20 kHz, +/- 1dB
    • Line Out: 1/8" (3.5mm) Stereo: 100 ohms, -10 dBu nom
    • Headphone: 1/4" Stereo: 8 ohms / 1/3 watt per channel
  • Phone Line:
    • Connector: RJ11C
    • Isolation: 3750 VAC
    • Wireless phone:
      • 1 meter cable with 3 conductor 2.5 mm plug,
      • 1 meter cable with 4 conductor 3.5 mm plug
    • Ringer: 0.5B REN
  • Power: 100-240 VAC, 50-60Hz or Two 9 VDC batteries
  • Size: 7.75" x 6.5" x 2.3"
  • Weight: 2.1 lbs
