Datavideo Corporation HDR-70
HD/SD-SDI Hard Drive Video Recorder

OUR PART #:  HDR-70

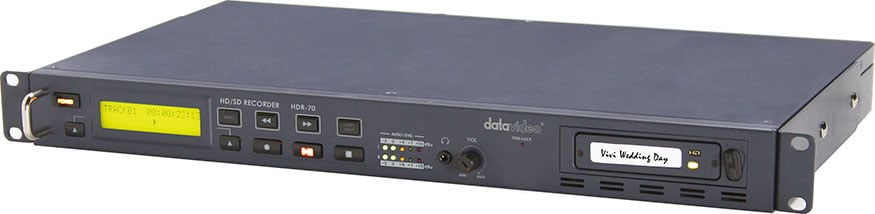

Datavideo's HDR-70 is a hard drive-based video recorder, with removable hard drive enclosure, designed for studio desktop applications.
Learn More
Our Price: $1,950.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation HDR-70
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Datavideo's HDR-70 is a hard drive-based video recorder, with removable hard drive enclosure, designed for studio desktop applications.  The HDR-70 records from both High and Standard Definition video equipment via HD/SD-SDI.  The HDR-70 comes with a 320 GB HDD and a removable hard drive enclosure.  One additional enclosure is included, if you would like to purchase another HDD.  And the HDR-70 is compatible with SSD drives.  Once you have completed your recording, simply eject the hard drive enclosure and use USB 2.0 to connect to a PC or MAC based NLE system.  The USB port provides power to the unit.  It’s perfect for use with laptops in the field.  You can work directly from the removable drive, or copy video files to your NLE's video drives.

Features:

  • HDR-70 can record in 1080p, as well as 1080i, 720p, 576i, and 480i.
  • HDR-70 ensures compatibility with SSD hard drives.
  • Accidental Power-Off Protection - In the case of an accidental power-off, like a blackout, the recorded file will still be saved, minus 2 seconds at the end of the file.
  • HDR-70 uses the NTFS file system.
  • Media files are made on the fly with the HDR-70.
  • HDR-70 has time code input and output.
  • HDR-70 features gen-lock input and pass-through.
  • Locking connectors keep the power plug securely attached.
  • HDR-70 has Power-On Record and Power-On Play.
  • HDR-70 is able to do timelapse recording.
  • HDR-70 has Ref-in/loop-through, Black Burst, and Tri-level Signal.

Included:

  • HDR-70 Recorder
  • 320GB Hard Drive with Enclosure
  • Additional Empty HD Enclosure
  • Power Adapter & Cable (DC 12V 1.5A 110/220)
  • Instruction Manual

Specifications:

Connections:

  • Video:
    Inputs: 1x HD/SD-SDI
    Supported Input Resolutions: 1080p(23.9, 24, 25, 29.9, 30), 1080i(50, 59.9, 60), 720p(50, 59.9, 60), 576i(50), 480i(59.9)
    Outputs: 1x HD/SD-SDI, 1x HDMI
  • Audio:
    Inputs: 2x Balanced XLR (Analog Stereo Pair 2-Channels)
    Outputs: 2x Balanced XLR (Stereo Pair 2-Channels)
    Embedding: Stereo Audio embedded to HD/SD-SDI (8-Channels) and HDMI (4-Channels) outputs and to saved file
    Recording Format: PCM 24-bits / 8-Channels / 48KHz Sampling Rate
  • Loop Through: 1x HD/SD-SDI

Saved File: MXF OP1A

Color Sampling:

  • HD (35-125Mbps): 4:2:2
  • HD (10-25Mbps): 4:2:0
  • SD (15-50Mbps): 4:2:2
  • SD (8Mbps): 4:2:0

Hard Drive:

  • 320GB HDD Included
  • Compatible with SSD Drives

Recording Times:

  • 250 GB:
    5 Mbps: 111 hrs
    10 Mbps: 55 hrs
    15 Mbps: 37 hrs
    20 Mbps: 27 hrs
    40 Mbps: 15 hrs
    60 Mbps: 9 hrs
  • 320 GB:
    5 Mbps: 142 hrs
    10 Mbps: 70 hrs
    15 Mbps: 47 hrs
    20 Mbps: 35 hrs
    40 Mbps: 19 hrs
    60 Mbps: 12 hrs
  • 500 GB:
    5 Mbps: 220 hrs
    10 Mbps: 111 hrs
    15 Mbps: 74 hrs
    20 Mbps: 55 hrs
    40 Mbps: 27 hrs
    60 Mbps: 18 hrs
