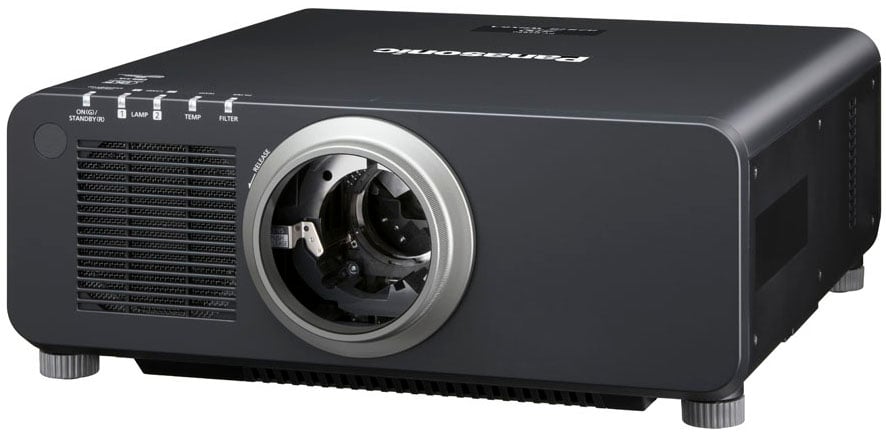

Panasonic PT-DX100ULK
10,000 Lumens 1DLP XGA Projector without Lens

OUR PART #:  PTDX100ULK

Similar Products

Vivid Picture Quality with High Brightness

Bright 10,000 lm from Compact Body
A unique dual-lamp drive system has helped to make the body compact, while two newly developed, high-output, 420 W lamps provide high brightness of 10,000 lm.

Dynamic Iris for a High 10,000:1* Contrast Ratio
Panasonic's Dynamic Iris uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1* contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures.
*Full on/off, with dynamic iris on.

The Dynamic RGB Booster Enhances Both Brightness and Color Reproduction
Panasonic's RGB Booster achieves high image quality with levels of color reproduction and brightness that make each color stand out.  It combines Panasonic's proprietary Vivid Color Control technology with a Lamp Modulation Drive System for a 1-chip DLP™ projector that produces bright and vivid colors.  This has been further advanced in the PT-DZ870 Series with the development of the Dynamic RGB Booster.  Images are analyzed frame by frame, and scene-linking and realtime modulation are used to achieve high brightness and vivid color reproduction.

Full-HD Ready WUXGA Resolution
The PT-DX100 features native WUXGA resolution for full-HD viewing.  This brings you lifelike projection of intricate, highly detailed images.

Advanced Technologies for Excellent Image Quality

  • 3D color management system
  • Full 10-bit image processing
  • Progressive cinema scan (3:2 pulldown)
  • Dynamic sharpness control
  • Digital noise reduction
  • IP conversion
  • AI scene control
  • 2:2 pulldown mode
  • sRGB compatibility

Panasonic PT-DX100 Includes:

  • Power cord with secure lock
  • Wireless/wired remote control unit
  • Batteries (R03/AAA type x 2)
  • Software CD-ROM (LogoTransfer Software, Multi Projector Monitoring &Control Software)

Panasonic PT-DX100 Features:

  • P-in-P function (This function cannot be used with some input signals and selected inputs.)
  • Mechanical lens shutter with fade in/out effect
  • Scheduling function
  • Direct power off
  • 30 m long-range wireless remote control
  • Anti-theft features with chain opening
  • Control device setup function
  • ID assignment for up to 64 units
  • Built-in test pattern
  • Selectable 10-language on-screen menu (English, German, French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Korean)
  • RoHS Directive compliant

Panasonic PT-DX100 Specifications:

  • Power supply: 120-240 V AC, 10-5.2 A, 50/60 Hz
  • Power consumption: 1,030 W (1,060 VA) (0.3 W when STANDBY MODE set to ECO*, 3 W when STANDBY MODE set to NORMAL)
    *When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
  • Dissipation BTU: 3,516 BTU/hour (without light PT-DZ870/DW830: 3,400 BTU/hour, PT-DX100: 3,379 BTU/hour)
  • DLP Chip:
    • Panel Size: 17.8 mm (0.7" diagonal) (4:3 aspect ratio)
    • Display method: DLP chip x1, DLP projection system
    • Pixels: 786,432 (1,024 x 768)
  • Lamp: 420W UHM lamp x2
  • Screen Size (diagonal): 1.27–15.24 m (50"-600"), 1.27-5.08 m (50"-200") with the ET-DLE055, 2.54-8.89 m (100"-350") with the ET-DLE030, 4:3 aspect ratio
  • Brightness**: 10,000 lumens (dual lamp, Lamp Mode:Normal)
  • Center-to-corner uniformity**: 90%
  • Contrast**: 10,000:1 (full on/full off, in dynamic iris 3 mode)
    **Measurement, measuringconditions, and method of notation all comply with ISO 21118 international standards.
  • Resolution: 1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels)
  • Scanning frequency:
    • HDMI/DVI-D: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz
    • RGB: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower
    • YPbPr (YCbCr): fH: 15.75 kHz, fV: 60 Hz [480i (525i)], fH: 15.63 kHz, fV: 50 Hz [576i (625i)], fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p], fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i], fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i], fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p], fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p], fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p], fH: 31.50 kHz, fV: 60 Hz [480p (525p)], fH: 31.25 kHz, fV: 50 Hz [576p (625p)], fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p], fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i], fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p], fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF], fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
    • Video/YC  fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Optical axis shift***:
    • Vertical: +/-50 % from center of screen (powered) (+/-45% from center of screen with the ET-DLE085)
    • Horizontal: +/-10% fron center of screen (powered)
      ***Optical axis shift CANNOT be operated with the ET-DLE055.
  • Keystone correction range: Vertical±40°****
    ****Not operable with the ET-DLE030.
  • Installation: Ceiling.floor, front/rear
  • Terminals:
    • HDMI IN: HDMI 19-pin x1 (Deep Color, compatible with HDCP)
    • DVI-D IN: DVI-D 24-pin x1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    • RGB 1 IN: BNC x5 (RGB/YPBPR/YCBCR/YC x1)
    • RGB 2 IN: D-Sub HD 15-pin (female) x1 (RGB/YPBPR/YCBCR x1)
    • 3D SYNC 1 IN/OUT: BNC x1 (3D timing signal)
    • 3D SYNC 2 OUT: BNC x1 (3D timing signal)
    • VIDEO IN: BNC x1 (composite video)
    • SERIAL IN: D-sub 9-pin (female) x1 for external control (RS-232C compliant)
    • SERIAL OUT: D-sub 9-pin (male) x1 for link control
    • REMOTE 1 IN: M3 x1 for wired remote control
    • REMOTE 1 OUT: M3 x1 for link control (for wired remote control)
    • REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
    • LAN / DIGITAL LINE: RJ-45 x1 (for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink™, Deep Color, compatible with HDCP)
  • Cabinet materials: Molded plastic
  • Dimensions with Legs at Shortest Position: 498 x 200x 513 mm (19-19/32" x 7-7/8" x 20-3/16") (without lens)
  • Weight: Approximately 17.6 kg (38.8 lbs)(without lens)
  • Operation noise**: 40 dB (dual lamp operation, lamp mode: NORMAL), 35dB (dual lamp operation, lamp mode: ECO)
    ****Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
  • Operating environment: Operating temperature: 0-45°C (32-113°F),operating humidity: 10-80 % (no condensation)
    NOTE: The operating temperature range is 0°C to 40°C (32°F to 104°F) when the FAN CONTROL isset to HIGH ALTITUDE MODE (for altitudes from 1,400 m to 2,700 m (4,593 ft to8,858 ft) above sea level). Also, if the ambient temperature exceeds 40°C(104°F) (35°C (95°F) in HIGH ALTITUDE MODE) when the projector is being used with LAMP SELECT set to DUAL and LAMP POWER set to HIGH, the light output may be reduced approximately 20 % to protect the projector.
  • Applicable software: Logo Transfer Software,Multi Projector Monitoring & Control Software
