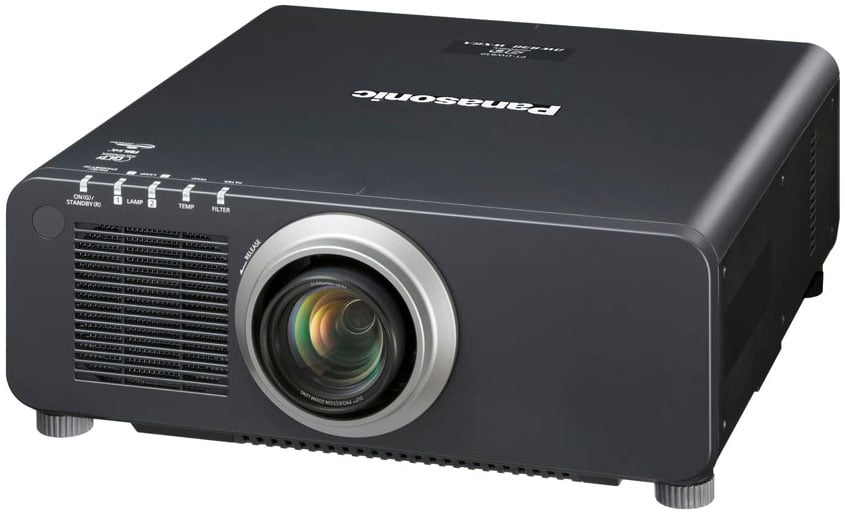

Panasonic PT-DW830UK 8500 Lumens WXGA DLP Projector

OUR PART #: PTDW830UK MFR #: PTDW830UK

Copied to clipboard

Vivid picture quality with high brightness, PTDW830UK from Panasonic is packed with color technology and key operational efficiencies—all in a compact body. ...Read more

Panasonic PT-DW830UK 8500 Lumens WXGA DLP Projector Image 1
Panasonic PT-DW830UK 8500 Lumens WXGA DLP Projector Image 2
Panasonic PT-DW830UK 8500 Lumens WXGA DLP Projector Image 3
Panasonic PT-DW830UK 8500 Lumens WXGA DLP Projector Image 4
Panasonic PT-DW830UK 8500 Lumens WXGA DLP Projector
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Vivid picture quality with high brightness, PTDW830UK from Panasonic is packed with color technology and key operational efficiencies—all in a compact body. Installed Dynamic Iris provides 8,500 lumens of brightness paired with the high-output 420W lamp. The dynamic RGB Booster enhances brightness and color reproduction, frame-by-frame image analysis allows for modulation of lamp output values to achieve optimal detail and rich imaging. Similar to DICOM part 14, the imaging mode meets medical imaging standards for reproductions of fine detail images, such as X-rays, in remarkable clarity from this Full-HD ready WUXGA resolution projector. PTDW830UK also features Panasonic's own Dual Lamp System, which keeps your presentations going uninterrupted in the event a one lamp goes out. Maintenance is easy from this filter-less, dust resistant optical engine design with a heat-pipe cooling system for advanced stability and reliability. From broadcast centers to medical classrooms, the flexible installation options, easy DIGITAL LINK connectivity, and dynamic imaging makes PTDW830UK a high performance projector like no other in its class.

Includes

  • Power cord with secure lock
  • Wireless/wired remote control unit (with AAA batteries x2)
  • Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software)

Features

  • 8500 Lumen, 1-chip DLP projector for rich, vivid color projection
  • Lamp Modulation Drive system for smart control of RGB color mixing for superior brightness
  • Full HD Ready WUXGA resolution and DICOM Simulation mode
  • Dual lamp system for uninterrupted performance
  • DIGITAL LINK single cable connectivity and Art-Net compatible

Specifications

  • Power supply: 120-240 V AC, 10-5.2 A, 50/60 Hz
  • DLP Chip:
    • Panel Size: 16.5 mm (0.65" diagonal) (16:10 aspect ratio)
    • Display method: DLP chip x1, DLP projection system
    • Pixels: 1,024,000 (1,280 x 800)
  • Lens: Powered zoom (throw ratio 1.8-2.5:1), powered focus F 1.7-1.9, f 25.6-35.7 mm
  • Lamp: 420W UHM lamp x2
  • Screen Size (diagonal): 1.27-15.24 m (50"-600"),1.27-5.08 m (50"-200") with the ET-DLE055, 2.54-8.89 m (100"-350") with the ET-DLE030, 16:10 aspect ratio
  • Brightness: 8,500 lumens (dual lamp, Lamp Mode; Normal)
  • Contrast: 10,000:1 (full on/full off, in dynamic iris 3mode)
  • Resolution: 1,280 x 800 pixels
    • Optical axis shift:
      • Vertical: +/-60 % from center of screen (powered)
      • Horizontal: +/-10% fron center of screen (powered)
    • Keystone correction range: Vertical ±40°
    • Installation: Ceiling/floor, front/rear
    • Dimensions:19-19/32" x 7-7/8" x 21-7/8"
    • Weight: 40.3 lbs
    • Applicable software: Logo Transfer Software, Multi Projector Monitoring & Control Software
    • Additional Specifications located in DOCUMENTATION tab

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
