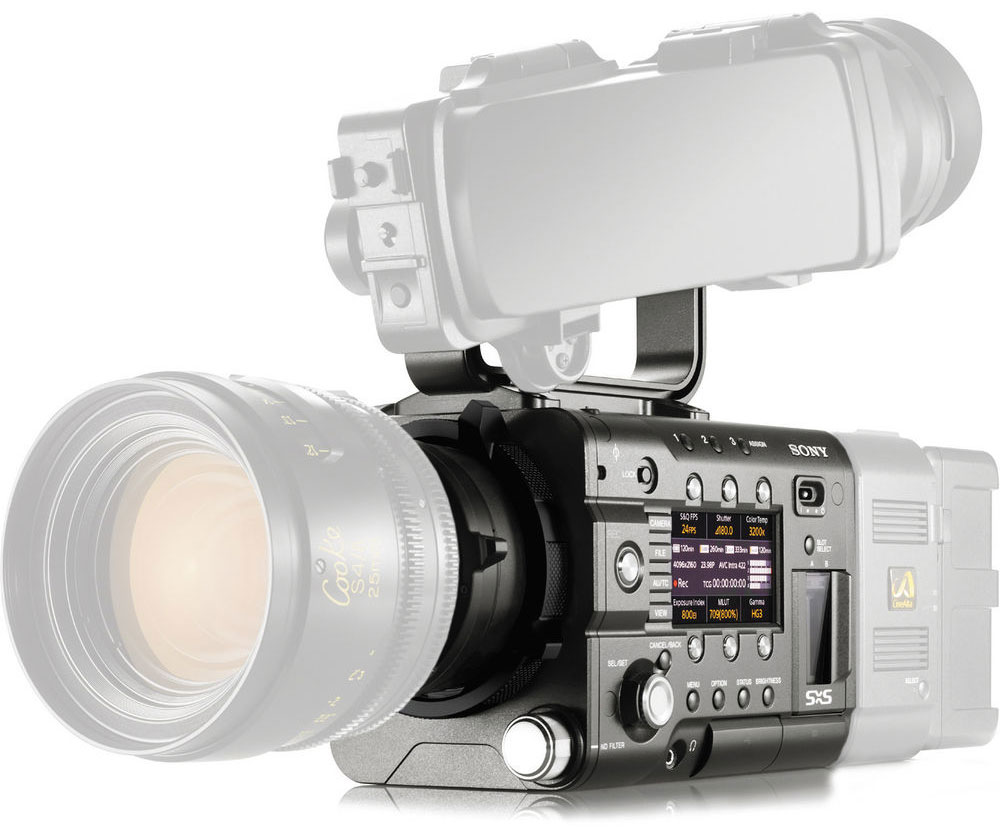

Sony PMW-F5
CineAlta 4K PMW Series HD Camcorder Body without Lens

OUR PART #  PMWF5

Our Price: $16,490.00
List Price: $19,400.00
You save 15%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Sony PMW-F5 CineAlta camera shoots spectacular images with its 8.9 megapixels (effective) Sony 4K image sensor. You get superior, super-sampled pictures with noticeably higher contrast, rich color reproduction and greater clarity. The camera offers robust built-in recording modes, all with vibrant 4:2:2 color. Irresistible options include the amazing precision of 16-bit linear RAW 2K/4K recording and high speed shooting at up to 120 fps without cropping. Multiple recording formats includes HD/2K on SxS memory and 16-bit RAW 2K/4K on AXSM™ media as well as MPEG-2 HD422, MPEG4 SStP, XAVC 2K/HD and 16-bit RAW 2K/4K. You can have simultaneous recording on internal high-speed SxS PRO+ memory cards and RAW 2K/4K recording on sleek AXSM™ memory cards using the optional bolt-on AXS-R5 recorder, designed specifically to attach seamlessly to the F55 and F5 cameras.

The F5 is exceptionally small, light and modular, letting you build up the right configuration for each job – or each shot. As well as the choice of formats and internal and external recording options, you can attached a variety of viewfinders, including the revolutionary optional DVF-EL100 OLED viewfinder, PL-mount, FZ-mount and still lenses, including second-generation Sony PL-mount lenses, and extra long-life Olivine – Lithium Iron Phosphate – batteries. The chassis is only slightly wider than a typical PL-mount prime lens, perfect for 3D rigs.

Sony PMW-F5 CineAlta Camcorder Features:

  • Super35mm 4K CMOS Image Sensor
  • 4,096 x 2,160, 11.6M total pixel, 8.9M effective pixel, Bayer pattern
  • High sensitivity (ISO 2000) and low noise (S/N 57dB w/NR off)
  • Accepts PL and FZ mount lens as well as other Cine, DSLR & SLR lenses(third party mount adapter is needed)
  • Multi CODEC: XAVC HD, MPEG2 HD, SR SStP HD (SxS Memory Card) 2K RAW (AXSMemory Card)
  • Modular Design Removable View Finder, Handle, Audio Input Box, RAWRecorder Easy to configure depends on the shooting style

Sony PMW-F5 CineAlta Camcorder Specifications:

  • Built-In Optical Filters:
       Clear
    -  0.9 =1/8ND = 3 STOPS
    -  1.8 = 1/64ND = 6 STOPS
  • Built-in-Filters:
       Clear
    -  0.9 (3STOPS)
    -  1.8 (6 STOPS)
  • Dynamic Range:  14 STOPS
  • Effective Picture Elements:
    -  8.9 @ 4K
    -  8.3 @QFHD & HD
  • Effective Pixels:
    -  8.9 @ 4K
    -  8.3 @ QFHD &HD
  • Gain Selection:  -3, 0, 3, 6, 9, 12, 18db
  • Horizontal Resolution:  4096 pixels, 2168 TV Lines, 170 LP/mm
  • Lens Mount:  Native Sony FZ mount, Includes PL Mount adapter.
  • Optical System:  Super35mm Single Image sensor
  • Pickup Device:  Super35mm equivalent Single-chip CMOS
  • S/N Ratio:  57dB DNR off
  • Sensitivity:  ISO 2000 @ S-Log2 Gamma with D55 Light source
  • Sensitivity (2000 lx, 89.9% reflectance):  T13 @ Odb, Standard Gamma,24p (3200K Light Source)
  • Shutter Speed:
    -  1/24s to 1/6,000s
    -  4.2° to 360°(electronic shutter angle)
  • Slow & Quick Motion Function:
    -  XAVC 2K/HD: 1-120p(NTSC), 23.98p/29.97p
    -  XAVC 2K/HD: 1-100p (PAL), 25p

For more information on Sony's CineAlta cameras, see:  www.sony.com/35mm
