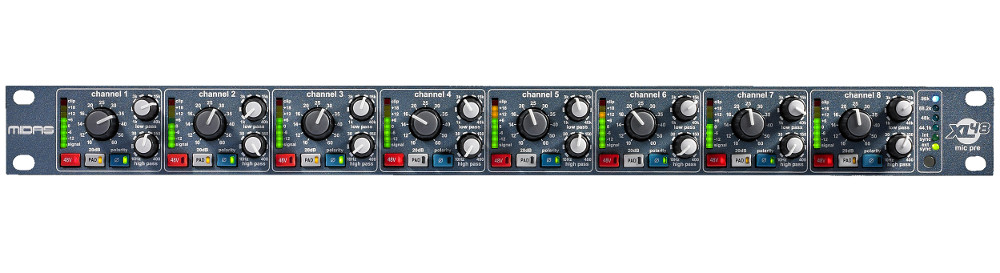

Midas XL48
8-Channel Mic Pre

OUR PART #:  XL48

The MIDAS XL48 packs 8 MIDAS XL4 mic preamps into a 1U box, complete with swept high and low pass filters, 8 MIDAS XL8 A/D converters and a super-low jitter 1ppm clock.
Learn More
Our Price: $899.99
List Price: $1,349.99
You save 33%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Midas XL48
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MIDAS XL48 packs 8 MIDAS XL4 mic preamps into a 1U box, complete with swept high and low pass filters, 8 MIDAS XL8 A/D converters and a super-low jitter 1ppm clock. Additional features include 8-segment LED input meters, individual phantom power, polarity invert, and -20 dB pad. All inputs are on Neutrik XLR and duplicated on 25-way D-sub connectors as standard.

XL48 features both analogue and digital outputs in ADAT and AES/EBU format. All five outputs can be used simultaneously, making the XL48 a multifunction analogue/digital mic splitter as well as adding the MIDAS touch to 8 channels of your mix. Multiple clocking options are available, including external word clock, internal 96 kHz, 88.2 kHz, 48 kHz, and 44.1 kHz.

Applications include portable recording rigs, analogue and/or digital splits between consoles, or improving the input stage of an ordinary digital console with MIDAS mic preamps, convertors and a reference-grade clock.

Features:

  • 8 mic/line inputs featuring classic MIDAS XL4 mic preamps
  • Unique all-analogue MIDAS XL4 swept low and high pass filters
  • Individual 48 V phantom power switching per channel
  • Individual -20 dB pad switching per channel
  • High accuracy 8 segment LED meter per channel
  • MIDAS XL8 ultra-low latency 96 kHz 24-bit A/D converters
  • Supports operation at 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz sampling frequencies
  • Ultra-low jitter reference-grade 1 part-per-million (1 ppm) temperature-compensated clock oscillator with external Word clock syncing options
  • Parallel fully-balanced XLR and 25 W D-Sub input connections
  • Driven and buffered fully-balanced 25 W D-Sub output connections
  • Dual AES3 25 W D-Sub output connector
  • Dual TOSLINK optical output connectors

Specifications:

  • Maximum Input Level
    Mic\Line +11 dBu
    Mic\Line + Pad +31 dBu
  • CMR at 1KHz (Typical)
    Mic (gain + 40 dB) > 80 dB
    Mic + Pad (gain + 40 dB) > 70 dB
  • Noise
    Mic EIN at 60 dB gain -128 dBu
    Mic EIN at 40 dB gain -125 dBu
    Output noise at minimum gain -95 dBu
  • Frequency Response 20 Hz – 20 kHz +0 dB to -1 dB
  • Distortion at 1 kHz Input to output (0 dB) 0.03%
  • Crosstalk at 1 kHz Channel to Channel < -90 dB
  • Maximum Output Level
    Line Outputs (into 600R) +21 dBu
  • Digital Output
    Sampling Frequency 96, 88.2, 48 or 44.1 kHz
    Bit Rate 24 Bit Only
    Dynamic Range (20 Hz-20 kHz) >110 dB
  • Power Requirements
  • Voltage: 100 V a.c. to 240 V a.c. ±10%
    Frequency: 50 Hz to 60 Hz
    Consumption: <25 W
