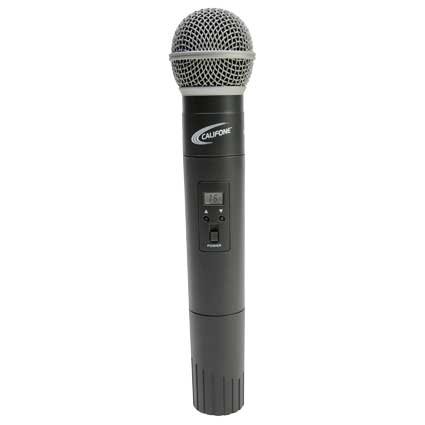

Califone Q319 Handheld Microphone Transmitter

The Califone Q319 is designed to work with the entire UHF line of wireless Califone® PA systems including: PowerPro™ SD (PA919SD), PowerPro (PA919), PowerPro Companion Speaker (PA919PS), iPod Wireless Portable PA (PA419), PresentationPro™ (PA319), and Wireless Array (PI39) speakers.

This economical mic eliminates the need for dedicated microphones to any given speaker and allows for mix-and-match uses, extends budgets, and provides system-wide flexibility.

Features:

• LCD display screen for 16 selectable channels for optimal sound choice and clarity
• Channel up/down buttons
• On/Off power switch
• Up to 150ft wireless transmission range to speaker

Specifications:

• Type: Dynamic
• Pattern: Unidirectional
• Carrier Frequencies: 904 - 925 mHz (16 channel)
• Channels: #1 904.85, #2 905.75, #3 906.85, #4 908.15, #5 909.65, #6 911.35, #7 913.45, #8 914.85, #9 915.75, #10 916.85, #11 918.15, #12 919.65, #13 921.35, #14 923.25, #15 924.15, #16 925.35
• Frequency Response: 90 Hz - 17kHz
• Frequency Stability: ±5kHz
• Oscillator PLL: Synthesized
• Modulation: FM (frequency modulation)
• Transmission Power: 10dBm
• Spurious Rejection: 55dB
• Distortion: > 1% THD
• Dynamic Range: 90 dB
• Range: Up to 150'
• Current Consumption: 42 mA
• Input Jack: 3.5mm
• Signal / Noise: 90dB
• AF Modulation Depth: 20K(AF=1KHz 50MV)
• Volume Code Modulate Depth: 3.5K±0.5K
• AF Frequency Response: 80Hz~18kHz (±3dB)
• Battery: 9V battery
• Weight: 10 oz with battery
• Safety / Compliance Testing: CE, FCC, RoHS
• Dimensions: 2" x 9"
• Speaker Compatibility: PA919SD, PA919, PA919PS, PA319, PI39
