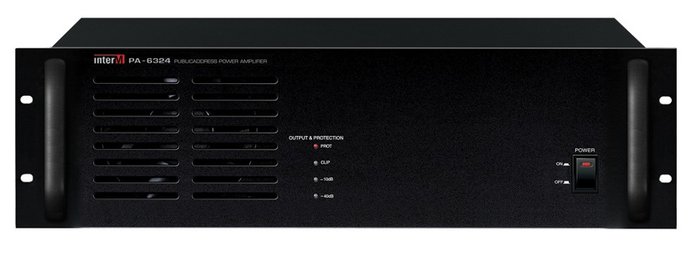

Inter-M Americas Inc PA-6324
240W 70V Commercial PA Amplifier

OUR PART #:  PA-6324

The PA-6324 is one of Inter-M's best-selling commercial PA amplifiers. The 6300 Series are recognized for their ruggedness, reliability and performance.
Learn More
Our Price: $538.62
List Price: $592.48
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Inter-M Americas Inc PA-6324
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The PA-6324 is one of Inter-M's best-selling commercial PA amplifiers. The 6300 Series are recognized for their ruggedness, reliability and performance. They are the installer’s choice for sound reinforcement, background music, paging, and public address systems. Featuring low-distortion, low-noise amplifier electronics circuits which provides a high-output and a high S / N ratio. PA 6300 series amps provide a wide dynamic range with excellent headroom. An onboard High Pass Filter protects both amplifier and speakers from damaging transients. A comprehensive thermal/electrical protection circuit ensures long-haul dependability. Thermister protected output helps ensure overall stability and provides input overload protection. Internal airflow and exceptionally quiet multi-stage fans ensures amplifier cooling. Phoenix-style terminals provides for quick, easy hookup. The PA 6300 series offers outstanding versatility, long term reliability, and a remarkable value for any installation application.

The PA-63000 Series amplifiers are high power output high quality rugged and reliable amplifiers to design to be used with the 6000 series mass communication system. Because of their outstanding versatility they have been the installer’s choice for sound reinforcement, background music, paging, and public address systems.

Inter-M Americas Inc PA-6324 Features:

  • High power - low noise circuit
    • Low-noise, high-output circuit offers better than 95dB signal-to-noise ratio.
    • 240W RMS output power THD (Total Harmonic Distortion) is less than1%
  • 400Hz HPF (High Pass Filter)
    • 400Hz, High Pass Filter removes low frequency noise, improves speech intelligibility and protects both amplifier and speakers from damaging transients
  • -12dB gain adjustment: Rear mounted trim pot offers -12dB volumeadjustment the nominal output.(Variable output voltage of up to 75%)
  • Output level indicators: Front panel LED indicates visual changes in output level.
  • Rack Mountable: Can be rack mounted utilizes 3U of rack mount space or used in a table top configuration.
  • High reliability: Built from high-reliability components ensures ruggedness and longterm failure free use.
  • Thermal Protection: Thermal and overload protection including controlledairflow and variable speed cooling ensures long-haul dependability

Inter-M Americas Inc PA-6324 Specifications:

  • Rated Output Power (THD 5%, 1kHz): 240 Watts
  • Frequency Response (+1/-3dB): 70Hz-18kHz
  • T.H.D: Less than 1%
  • High Pass Filter: 400Hz, -3dB
  • Gain Control: 0dB ~ -12dB
  • S/N: Better than 95dB
  • Input Sensitivity/Impedance: 1V/10 kOhms Balanced
  • Output Voltage/Impedance: 4 Ohms/31V, 21 Ohms/70V, 42 Ohms/100V
  • Power Source: 100–120VAC or 220–240VAC; 50/60Hz, 24VDC (Supplied AC mains transformer depends on country requirements)
  • Power Consumption (1/8 power): 450W
  • Weight (Set): 41.9lbs (19kg)
  • Dimensions (Set): 19"(W) x 5.2"(H) x 11"(D)
