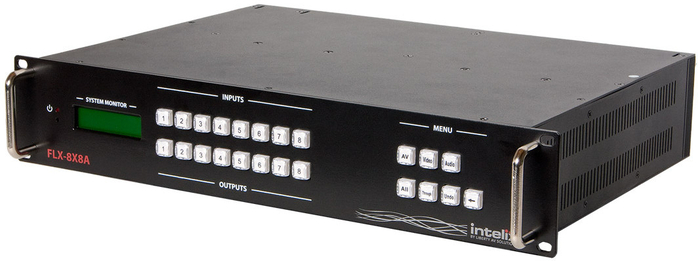

Intelix FLX-88
8x8 Input to Output Modular Video/Audio Matrix Switcher

OUR PART #:  FLX-88

The Intelix FLX-88 provides you with a modular 8 input by 8 output video matrix switcher plus built-in 8 input by 8 output stereo audio matrix switcher.
Learn More
Our Price: $4,726.77
List Price: $5,251.96
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix FLX-88
Qty:
In Stock

Similar Products

The Intelix FLX-88 provides you with a modular 8 input by 8 output video matrix switcher plus built-in 8 input by 8 output stereo audio matrix switcher. Each modular input or output card (sold separately) supports up to 4 device connections. In addition to front panel control, IR, RS232, or TCP/IP connections also offer control options. Available modular input card connectivity includes: HDMI, DVI, HDBaseT (with RS232 and bi-directional wide-band IR), and analog video with digital scaling via HD15 (VGA-UXGA, RGBHV, RGsB, RsGsBs, component video, S-video and composite video), plus HDMI, DVI and HDBaseT connectivity is available on the modular output cards. The analog stereo audio I/O on the FLX-88 can interface to balanced or unbalanced audio devices. In addition to audio-follow-video, the video and audio signals can independently be switched. Legible text labeling is provided on the front panel clear button caps, and can be customized for each installation. IR, RS232, and TCP/IP provide a wide array of 3rd-party control system options, and 10 programmable presets offer efficient configuration for video and audio distribution for common workflows. Designed with flexibility in mind, over 80 possible input card to output card combinations are available (cards sold separately), and thanks to its modular setup, system integrators can customize their installation per customer needs and without the limitations of available hardware.

Intelix FLX-88 Includes:

  • FLX-88 Unit
  • Installation Guide
  • IR Remote
  • RS232 Cable
  • Power Cable
  • Modular Metal Blank
  • Rubber Feet (4 ea)
  • Intelix Pocket Screwdriver

Intelix FLX-88 Features:

  • 8x8, 16x16, and 32x32 card frames available
  • HDMI, HDBaseT, DVI, VGA, YPbPr, S-Video, and Composite video input options
  • HDMI, HDBaseT, and DVI output options
  • Hot-swappable I/O cards
  • Any input type to any output type
  • RS232, IR, Ethernet and front panel control
  • Built-in EDID management
  • Redundant power supplies on larger models

Intelix FLX-88 Specifications:

I/O Connections

  • Supported Input Cards: FLX-BI4, FLX-DI4, FLX-HI4,FLX-RI4, FLX-HI4A
  • Supported Output Cards: FLX-BO4, FLX-DO4, FLX-HO4, FLX-BO4A, FLX-HO4A
  • Input and Output Card Securing Mechanism: Thumbscrew
  • Control, Rear Panel: RS232 via DE-9, TCP/IP via 8P8C Connector
  • Control, Front Panel: Push Button, IR

Chassis and Environmental

  • Material: Black Painted Aluminum
  • Dimensions: 483mm x 356mm x 133mm (19 in. x14 in. x 5.25 in.)
  • Rack Spacing: 2RU
  • Shipping Weight: 5.9 kg (13 lbs.)
  • Operating Temperature: 0° to +40° C (+32° to +104° F)
  • Operating Humidity: 20% to 90%, Non-condensing
  • Storage Temperature: -10° to +60° C (+14° to +140° F)
  • Storage Humidity: 20% to 90%, Non-condensing

Power, ESD, and Regulatory

  • Power Supply: 100-240VAC 50/60 Hz
  • Power Consumption: FLX-88: 60 watts Fully Populated
  • ESD Protection: 15kV
  • Regulatory: CE, RoHS

Other

  • Warranty: 2 years
  • Diagnostic Indicators: LCD output status and power LED

NOTE: Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. Intelix specifications are based on straight through cabling with standard-grade Cat 5e unless noted otherwise.
