Elite Core Audio EC-EBO8
1RU 8-Channel EtherCon Breakout Panel

OUR PART #:  EC-EBO8

Elite Core Audio's EC-EBO8 8-Channel EtherCon Breakout Panel Features: Metal Single Space Rack - Black 8x Neutrik NE8FDP Ethercon Pass-Through Adapters 8x 3 ft.
Learn More
Our Price: $159.99
List Price: $274.99
You save 42%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elite Core Audio EC-EBO8
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

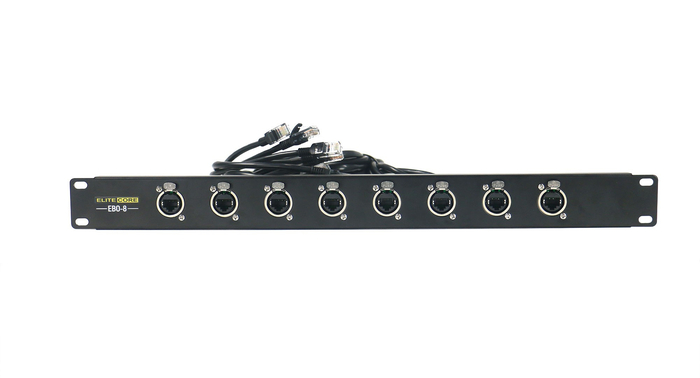

Elite Core Audio's EC-EBO8 8-Channel EtherCon Breakout Panel Features:

  • Metal Single Space Rack - Black
  • 8x Neutrik NE8FDP Ethercon Pass-Through Adapters
  • 8x 3 ft. Amphenol Cat6 Cables

Single Space Metal Panel for standard 19" racks loaded with 8 Neutrik NE8FDP etherCON pass-through connectors.  Complete with 8x 3' Amphenol Cat6 cables, this panel comes with everything you need to convert the RJ45 outputs from a DM-8 to rugged etherCON connections.

Amphenol Cat6 Cable

Genuine Amphenol Category 6 patch cables support bandwidth in excess of 550 Mhz, providing excellent performance in 10-Gigabit Ethernet applications.  Installers estimate Cat6 cabling will have a lifespan of at least 20 years before it becomes obsolete due to its excellent headroom.  Upgrading from Cat5e to Cat6 reduces frame errors by over 92%, drastically improving data integrity.  Featuring low-profile RJ-45 connectors, 50-Micron Gold plated contacts, and an integrated x-web to enhance pair separation and reduce cross-talk (NEXT).

Neutrik NE8FDP Ethercon Pass-Through

The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications.  The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
 The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Amphenol Cat6 Cable Specifications:

  • Bandwidth: >550 Mhz
  • Connectors: Low Profile RJ-45
  • Contacts: 50-Micron Gold Plating

Neutrik NE8FDP Ethercon Pass-Through Specifications:

  • Contact Resistance: < 10 mOhm (inner)
  • Dielectric Strength: 1 kVdc
  • Insulation Resistance: > 0.5 GOhm
  • Rated Voltage: 50 V
  • Panel Thickness: Max = 4 mm
  • Wiring: Feedthrough
  • Mounting Direction: Front & Rear
  • Chassis Shape: D
  • Shell: Zinc Diecast
  • Shell plating: Nickel

Shipping Dimensions: 19" L x 6" W x 2" H

Shipping Weight: 3 lbs
