Kupo KG203311
20" Extension Grip Arm with Big Handle in Black Finish

OUR PART #:  KG203311

The 20" Grip Arm with Big Handle...
Learn More
Our Price: $30.95
Write the first review.
Kupo KG203311
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

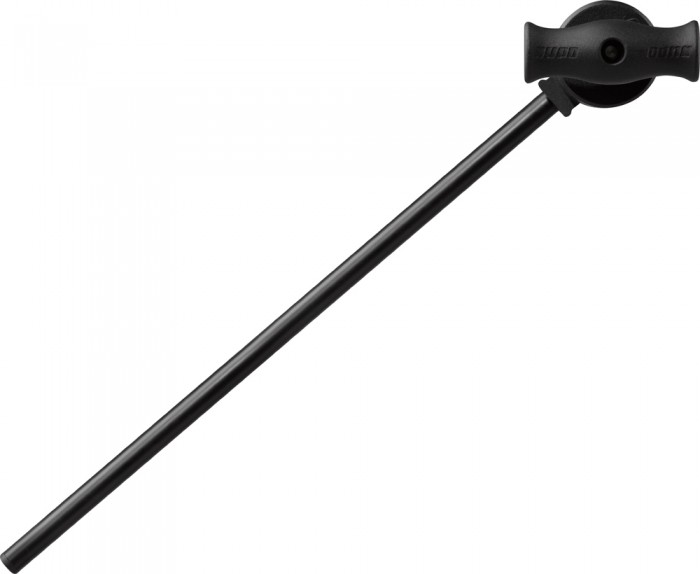

The 20" Grip Arm with Big Handle, KG203311 is a 2 1/2" grip head mounted on the end of a 20" piece of steel tubing 5/8" (16mm) in diameter and comes in a black powder coated finish. The surface of the tubing is painstakingly machined to create a rough texture to ensure a non-slip surface. The 2-1/2" grip head consists of a pair of rotating aluminum discs attached to a 5/8" (16 mm) receiver. The discs have four different sized "V" shaped jaws to accept any accessory with a 5/8", 1/2", 3/8" or 1/4" mounting stud or tubing. The "V" shaped jaws have "teeth" that grab whatever is mounted between the plates securely.

The 2-1/2" grip head features an oversized ergonomic "T" handle and dedicated roller bearings designed for maximum torque. The grip head uses a non-slip aluminum friction disc that will maintain its durability over time that offers the user positive locking strength and precise control, and is constructed around a solid steel central bolt with a fixed solid pin to secure it to the aluminum casting for increased strength and durability. The 20" grip arm is almost always used in conjunction with a 2 1/2" grip head, giving you complete flexibility to position a gobo "go between the light and a subject" such as flags, scrims and silks as well as other accessories virtually anywhere.

Kupo KG203311 Extension Grip Arm Specifications:

  • Length: 21.25" (53.98 cm)
  • Width: 6.19" (15.72 cm)
  • Height: 2.5" (6.35 cm)
  • Weight: 2.4 lbs (1.09 kg)
  • Primary Material: Aluminium
  • Secondary Material: Steel Bar
  • Minimum Jaw Diameter: 0.25" (6.35 mm)
  • Maximum Jaw Diameter: 0.62" (16 mm)

To be the first to review this item, click here.
