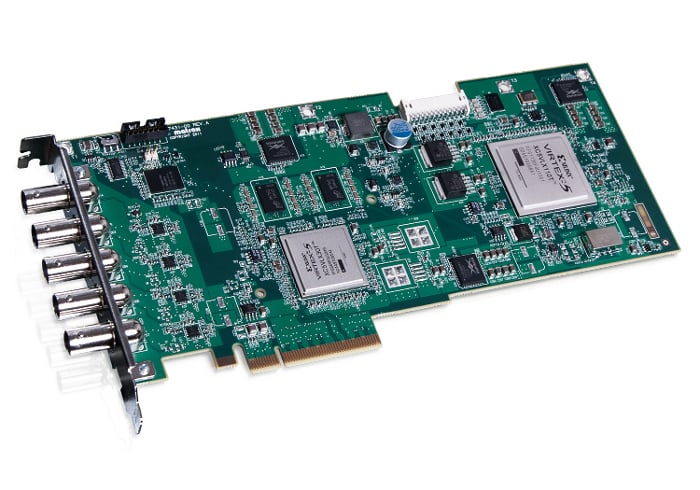

Matrox Mojito 4K
4K Video Monitoring Card

OUR PART #:  MOJITO4K

Matrox Mojito 4K offers post-production professionals a fluid editing experience with uninterrupted playback...
Learn More
Our Price: $1,995.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Matrox Mojito 4K
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Matrox Mojito 4K offers post-production professionals a fluid editing experience with uninterrupted playback, which lets them see every pixel of every 4K frame in real time for crafting breathtaking content. Matrox Mojito 4K lets you finish your productions while monitoring up to 4Kp60 for Adobe Creative Cloud software.

Unlike professional broadcast monitors that accurately display your video in full resolutions and with proper color representation, computer monitors don’t have the ability to show every pixel, nor can the system GPU account for color space conversions. Matrox Mojito 4K provides an editing and monitoring solution that supports true 4Kp60 so you know that what you see is what you are delivering.

Not every job is the same; you might shoot in 4K but need to deliver a 2K or even an HD version. Matrox Mojito 4K can monitor any finishing resolution including SD, HD, 2K, QFHD (Quad Full-HD), and 4K, so you can take on any job.

To accurately judge your video content when editing, it is best to view it in its native resolution and color space. Matrox Mojito 4K provides the highest quality video editing experience by outputting projects with 1:1 pixel accuracy and 10-bit color precision to the monitor.

Just like video deliverables change from job to job, so do your audio requirements. From multi-language projects to 7.1 surround mixes, Matrox Mojito 4K supports up to 16 channels of embedded audio. Choose from working with a simple stereo mix to surround sound and beyond for all your post-production needs.

Editing is just one step in your post-production process. Acquiring your digital media, and adding graphics and special effects to your project are also key parts of a professional workflow. Matrox Mojito 4K provides monitoring for Adobe Premiere Pro CC, Adobe Prelude CC, Adobe Speed Grade CC, and Adobe Encore CC through the Adobe Transmit Engine. Matrox Mojito 4K also provides artists with WYSIWYG tools for Adobe After Effects CC and Adobe Photoshop CC, which let them see their work as the audience sees it.

Matrox Mojito 4K Features:

  • 4K (4096 x 2160), QFHD (3840 x 2160), 2K (2048 x 1080), HD and SD output resolutions
  • 60 fps frame rate support, even at 4K resolutions
  • SD, HD and 3G-SDI connectivity per SMPTE 259, 292 and 424/425M Level A and Level B mapping
  • 8- and 10-bit YUV output at all resolutions and frames rates
  • 16 channels of SDI embedded audio support
  • Bi-level and tri-level genlock input
  • Five full-size BNC connectors directly on the card bracket
  • Highly optimized Adobe Transmit plug-ins for Adobe Premiere Pro and Adobe SpeedGrade™
  • WYSIWYG support for Adobe After Effects® and Photoshop®

Matrox Mojito 4K Specifications:

Supported video formats

  • NTSC/PAL
  • 720P 50/59.94
  • 1080I 25/29.97
  • 1080P 23.98/24/25/29.97/30/50/59.94/60
  • 1080PsF 23.98/24/25/29.97/30
  • 2K 2048x1080P 23.98/24/25/29.97/30/50/59.94/60
  • 2K 2048x1080PsF 23.98/24/25/29.97/30
  • QFHD 3840x2160P 23.98/24/25/29.97/30/50/59.94/60
  • QFHD 3840x2160PsF 23.98/24/25/29.97/30
  • 4K 4096x2160P 23.98/24/25/29.97/30/50/59.94/60
  • 4K 4096x2160PsF 23.98/24/25/29.97/30

SDI output

  • Four simultaneous SDI: SD, HD, 3Gb/s (level A & B)and 2K
  • Compliant to SMPTE259:2008, SMPTE292-1:2012, SMPTE ST424:2012 and ST 425-1:2011 (level A & B)
  • One Quad-HD (3840 × 2160 up to 60 Frame/sec) or 4K(4096 × 2160 up to 60 Frame/sec) on four SDI outputs, 4:2:2 10-bit (level A& B)
  • BNC connector (75 Ohm), terminated
  • Equalized output for maximum cable length support

Audio

  • SDI audio output
    • Supports up to 16 channels of embedded audio per SDI video stream
    • In accordance with SMPTE 272M A, B, and C (SD), SMPTE 299M (HD)
    • Sampling rate at 48kHz
    • 16-, 20-, and 24-bit audio streams are supported

Genlock

  • Reference input
    • HD analog tri-level sync or SD analog bi-level black burst
    • BNC connector (75 O), terminated

Software

  • Editing - Adobe Premiere Pro

Content creation

  • Adobe After Effects, Adobe Photoshop, Adobe Prelude, Adobe SpeedGrade, Adobe Encore

Dimensions

  • ¾ length PCI Express (x8) card
  • L: 23.2 cm (9.125") × W: 10.7 cm (4.2")
  • Overall thickness including components 1.9 cm (0.75")

Regulatory compliance

  • FCC Class A, CE Mark Class A, ACMA Class A
  • RoHS Directive 2002/95/EC

Limited warranty and service

  • 3-year limited warranty with free telephone support

Electrical and Operating Requirements

  • Total power consumption: 23.0 watts

Environmental

  • Operating temperature: 0 to 55º C (32 to 131º F)
  • Storage temperature: -40 to 75º C (-40 to 167º F)
  • Maximum altitude for operation: 3,000 meters
  • Maximum altitude for transport: 12,000 meters
  • Operating humidity: 20 to 80% relative humidity (non-condensing)
  • Storage humidity: 5 to 95% relative humidity (non-condensing)

What's in the Box:

  • Matrox Mojito 4K
