Electro-Voice EVF1122D/94
12" Two-Way Speaker with 90x40 Degree Waveguide in White

OUR PART #:  EVF1122D/94-WHITE

Our Price: $2,390.00

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EVF1122D/94
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

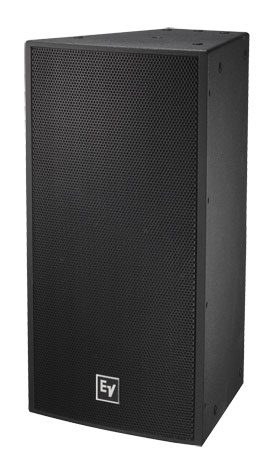

The EVF-1122D/94 from Electro-Voice is a premium 12-inch two-way full-range loudspeaker that features a 90° x 40° rotatable waveguide and is designed for far mid-far field long throw coverage pattern.

Note: The image shown is for illustrative purposes only. Actual item finish is white.

EVF is the most comprehensive series of front-loaded loudspeaker systems ever offered for installed sound. Available in 12" or 15" two-way configurations, and enhanced with dedicated low-frequency systems, EVF loudspeakers match exceptional audio performance, efficiency, ease-of-use, and aesthetics with unprecedented value. EVF systems incorporate the latest Electro-Voice components to ensure years of reliability and exceptional sound. "D" designated systems are equipped with our highest performance DVX series symmetric drive woofers and the DH7N 3" pure titanium compression driver.

EVF two-way full-range systems are offered in seven coverage patterns that provide solutions for the widest possible range of installation challenges. The 12" Constant Directivity waveguides can be rotated to work with a vertical or horizontal orientation. Bi-amp operation is supported, but the sophisticated fourth-order crossover and protection network makes cost-saving, passive operation extremely attractive. Using optional rigging accessories, you can create attractive clusters that include EVF full-range systems, as well as EVF subwoofers or EVH full-range systems. Cabinets are available in three finishes: EVCoat (interior use), PI (indirect weather exposure), and FG (fiberglass - for direct weather exposure); they include twenty-two M10 threaded suspension points.

Features:

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60º to 120º
  • 97 dB sensitivity, 131 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • 4th-order passive crossover with HF protection
  • Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)

Specifications:

  • Environmental Specs Standard versions: IEC 60529 IP44, PI and FG versions: IEC 60529 IP55
  • Input Connections Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
  • Frequency Response (-3 dB) 57 - 18000 Hz
  • Frequency Response (-10 dB) 49 - 21000 Hz
  • Recommended High-Pass Frequency 65 Hz
  • Sensitivity 1 W/1 m 97 dB
  • Max. SPL/1m (calc) 131 dB
  • Coverage (Nominal -6 dB) H 90 °
  • Coverage (Nominal -6 dB) V 40 °
  • System Power Handling (Continuous/Program/Peak) 600/1200/2400 Watts
  • LF Transducer DVX3121A 12-inch (305mm) woofer
  • LF Nominal Impedance 8 Ohms
  • HF Transducer DH7N 3-inch (76mm) diaphragm compression driver
  • Crossover Frequency 1300 Hz
  • Nominal Impedance (Passive) 6 Ohms
  • Minimum Impedance 6 Ohms
  • Enclosure Material 13-ply weather-resistant birch with EVCoat
  • Grill 16 GA powder-coated galvanneal with screen behind
  • Suspension (22) M10 threaded suspension points
  • Height 768.6 mm (30.26")
  • Width 406.3 mm (16")
  • Depth 413.3 mm (16.27")
  • Weight Net 29.7 kg (65.48 lbs)
  • Shipping Weight 34.4 kg (75.84 lbs)
