Product Overview

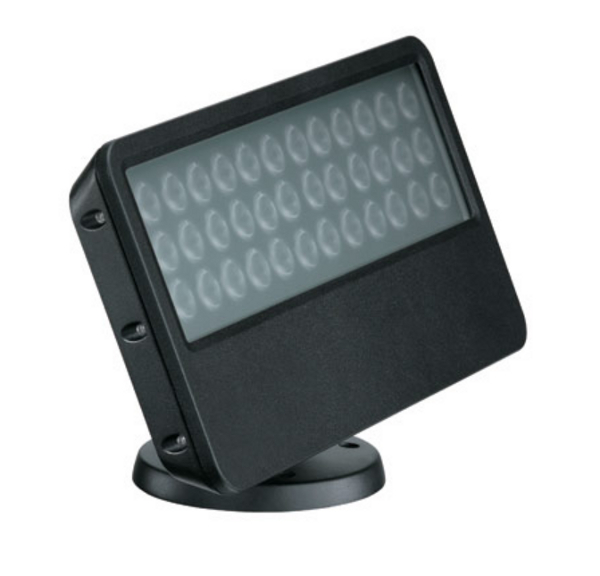

ColorBlast Powercore high-performance LED fixtures combine rich, saturated, wall-washing color and color-changing effects with simplified installation. ColorBlast Powercore offers a range of beam angles for wall washing, grazing, floodlighting, and spotlighting, along with the efficiency and cost-effectiveness of Powercore technology in a rugged die-cast aluminum housing. This version features a 86°with no optic light spread in a black housing.
ColorBlast Powercore fixtures are part of a complete system which includes:
- One or more Data Enabler Pro devices
- Any Philips controller, including Light System Manager, iPlayer 3, and ColorDial Pro, or a third-party controller
- 4-conductor copper wire to connect ColorBlast Powercore fixtures in series or in parallel. Standard 12 AWG (2.05 mm) stranded wire is recommended
Philips Color Kinetics ColorBlast Includes:
- ColorBlast Powercore fixture
- Two 8-32 screws for indoor installation
- Four 10-24 stainless steel screws for outdoor installation
- 1/8 in hex key wrench for fixture positioning and locking
- Junction box gasket
- Installation Instructions
Philips Color Kinetics ColorBlast Features:
- Superior light output — Produces saturated, full-colorlight output of up to 1471 lumens with light projection of up to 204 feet. Fixtures are available in four beam angles: 23° and 36° for soft edges, 86° with no optic for uniformly washing façades, and a 10° beam for extended light projection.
- Integrates patented Powercore technology — Powercore rapidly, efficiently, and accurately controls power output to fixtures directly from line voltage. The Philips Color Kinetics Data Enabler Pro merges line voltage with control data and delivers them to fixtures over a single standard cable, dramatically simplifying installation and lowering total system cost.
- Versatile light positioning — Locking canopy base offers friction-free rotation of up to 350°, and 110° fixture tilting lets you quickly aim the fixture without special tools.
- Easy installation — By providing line voltage directly to fixtures, Powercore eliminates the need for external power supplies and special wiring. Fixtures can be mounted to a junction box on a wall, ceiling,or floor.
- Universal power input range — ColorBlast Powercore accepts power input of 100 – 240 VAC, allowing the installation of many fixtures in a continuous run.
- Industry-leading controls — ColorBlast Powercore works seamlessly with the complete Philips Color Kinetics line of controllers, including ColorDial Pro, iPlayer 3, and Light System Manager, as well as third-party controllers.
- Efficient and cost-effective — Replacing metal halide fixtures with ColorBlast Powercore fixtures can dramatically reduce electricity and maintenance costs while delivering superior consistency and uniformity of light and color.
- Outdoor rated — Fully sealed for maximum fixture life and IP66 rated for outdoor applications, ColorBlast Powercore meets or exceeds specifications for use in wet locations. Rugged, die-cast aluminum housing is available in white or black powder-coated finish.
Philips Color Kinetics ColorBlast Specifications:
- Type: 86° (no optic)
- Housing Color: Black
- Lumens*: 1471
- LED Channels: Red / Green / Blue
- Mixing Distance: 6" (152 mm) to uniform light
- Lumen Maintenance†: 50,000+ hours L50 @ 50° C (full output)
- Electrical
- Input Voltage: 100 – 240 VAC, auto-switching, 50 / 60Hz via Data Enabler Pro
- Power Consumption: 50 W maximum at full output, steady state
- Power Factor: .98 @ 120 VAC
- Control
- Interface: Data Enabler Pro (DMX / Ethernet)
- Control System: Philips full range of controllers, including Light SystemManager, iPlayer 3, and ColorDial Pro, or third-party controllers
- Physical
- Dimensions (HxWxD): 7.1" x 12.5" x 4.9" (172 x 317 x 125 mm)
- Weight: 6.4 lb (2.9 kg)
- Effective Projected Area: 0.05211 m2
- Housing: Die-cast aluminium, powder-coated finish
- Lens: No optic
- Fixture Connections: 6 ft (1.8 m) unified power / datacable
- Temperature Ranges:
- Operating: -40° – 122°F (-40° – 50°C)
- Startup: -4° – 122°F (-20° – 50°C)
- Storage: -40° – 176°F (-40° – 80°C)
- Humidity: 0 – 95%, non-condensing
- Fixture Run Lengths: To calculate fixture run lengths and total power consumption for your specific installation, download the Configuration Calculator from www.philipscolorkinetics.com/support/install_tool/
- Certification and Safety
- Certification: UL / cUL, FCC Class A, CE, PSE
- Environment: Dry / Damp / Wet Location, IP66
NOTE:
* Lumen measurement complies with IES LM-79-08.
† L50 = 50% lumen maintenance (when light output drops below 50% of initial output). Ambient luminaire temperatures specified. Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers. Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures. Refer to www.philipscolorkinetics.com/support/appnotes/ for more information.
