City Theatrical 5740

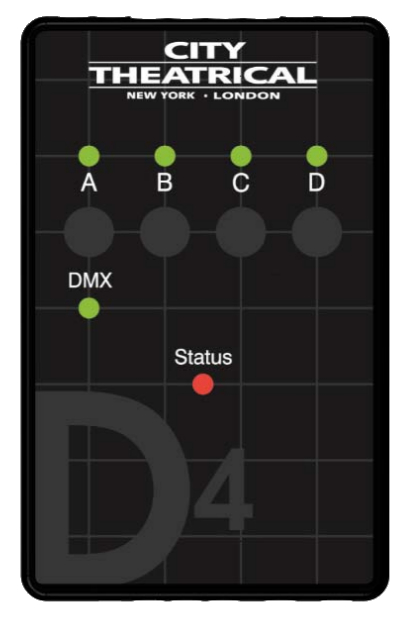

SHoW DMX D4 Dimmer

OUR PART #:  5740

The SHoW DMX D4 Dimmer provides a tiny but powerful and affordable new way to control LED tape, other LEDs, or low voltage incandescent fixtures.
Learn More
Our Price: $391.00
List Price: $460.00
You save 15%!
Write the first review.
City Theatrical 5740
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The SHoW DMX D4 Dimmer provides a tiny but powerful and affordable new way to control LED tape, other LEDs, or low voltage incandescent fixtures. This new miniature dimmer is available as 4 channel (D4) version, with either an integrated SHoW DMX Neo® Wireless DMX Receiver or a wired DMX input. This version is the 4 channel (D4) unit with a wired DMX input.

City Theatrical 5740 SHoW DMX D4 Dimmer Features:

  • DMX Control Features - 3P Screw Terminals for DMX Out
  • Four (D4) dimmer output channels
  • Max output per dimmer channel 5A
  • Max total output per device 10A
  • Screw terminal connections for power input and dimmed output
  • Individually protected against over-current
  • Individually protected against over-temperature
  • Individual bump buttons
  • PWM resolution 16-bit
  • Dimming Curves:
    • Linear, 60Hz
    • ISL, 60Hz
    • Non-Dim
  • LED Features:
    • Five variable LED smoothing rates
    • Four Film and Video Modes
  • Individual DMX addresses
  • Fully RDM enabled

Mechanical

  • NEMA 1 ABS enclosure

Electronic/ Functional Features

  • Bump Buttons
  • DIP Switch, DMX Addressing (9POS)
  • DIP Switch, SHoW ID addressing (8POS)
  • DIP Switch, Curve Selection (4POS)
  • DIP Switch, LED Curve PWM Frequency Selection (4POS)
  • DIP Switch, DMX Termination (wired DMX units only,1POS)
  • LED indicators:
    • Dimmer pilot lights (one for each channel)
    • Data (data present)
    • RF Signal Strength (4 LEDS) Low to High
    • Status

Compliance

  • RoHS Compliant
  • CE Pending
  • FCC Pending

City Theatrical 5740 SHoW DMX D4 Dimmer Specifications:

  • Power: 7.5-30VDC 10A Max Power Input
  • Weight: 0.15 lbs (0.08Kg)
  • Dimensions (WxHxD): 2.25” x 3.5” x 0.56” (57 x 60 x 14 mm)(excluding antenna)
