City Theatrical 5720

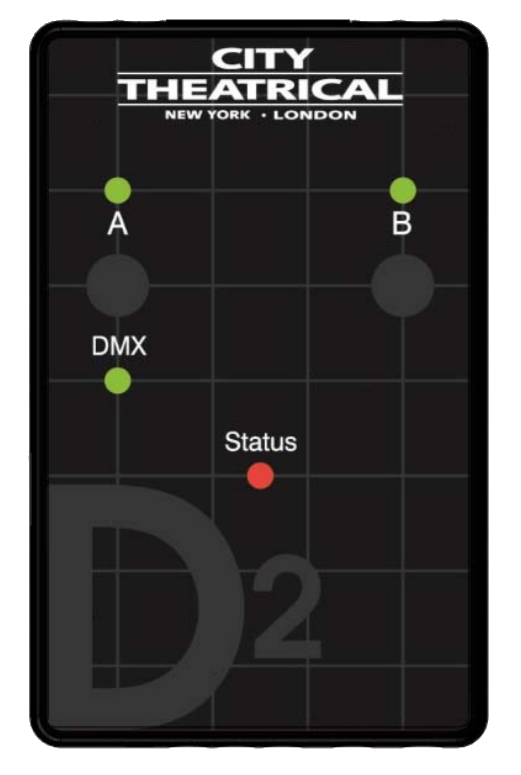

SHoW DMX D2 Dimmer

OUR PART #:  5720

The SHoW DMX D2 Dimmer provides a tiny but powerful and affordable new way to control LED tape, other LEDs, or low voltage incandescent fixtures.
Learn More
Our Price: $212.50
List Price: $250.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

City Theatrical 5720
Qty:
In Stock

Similar Products

The SHoW DMX D2 Dimmer provides a tiny but powerful and affordable new way to control LED tape, other LEDs, or low voltage incandescent fixtures. This new miniature dimmer is available as either a 2 channel (D2), but 4 channel (D4) version is also available, with either an integrated SHoW DMX Neo® Wireless DMX Receiver or a wired DMX input. This version is the 2 channel (D2) unit with a wired DMX input.

City Theatrical 5720 SHoW DMX D2 Dimmer Features:

  • DMX Control Features - 3P Screw Terminals for DMX Out
  • Two (D2) dimmer output channels
  • Max output per dimmer channel 5A
  • Max total output per device 10A
  • Screw terminal connections for power input and dimmedoutput
  • Individually protected against over-current
  • Individually protected against over-temperature
  • Individual bump buttons
  • PWM resolution 16-bit
  • Dimming Curves
      -  Linear, 60Hz
      -  ISL, 60Hz
      -  Non-Dim
  • LED Features
      -  Five variable LED smoothing rates
      -  FourFilm and Video Modes
  • Individual DMX addresses
  • Fully RDM enabled

Mechanical

  • NEMA 1 ABS enclosure

Electronic/ Functional Features

  • Bump Buttons
  • DIP Switch, DMX Addressing (9POS)
  • DIP Switch, SHoW ID addressing (8POS)
  • DIP Switch, Curve Selection (4POS)
  • DIP Switch, LED Curve PWM Frequency Selection (4POS)
  • DIP Switch, DMX Termination (wired DMX units only,1POS)
  • LED indicators:
      -  Dimmer pilot lights (one for each channel)
      -  Data (data present)
      -  RF Signal Strength (4 LEDS) Low to High
      -  Status

Compliance

  • RoHS Compliant
  • CE Pending
  • FCC Pending

City Theatrical 5720 SHoW DMX D2 Dimmer Specifications:

  • Power:  7.5-30VDC 10A Max Power Input
  • Weight:  0.15 lbs/.08Kg
  • Dimensions: 2.25”/57mm W x3.5”/60mmH x 0.56”/14mmD (excluding antenna)
