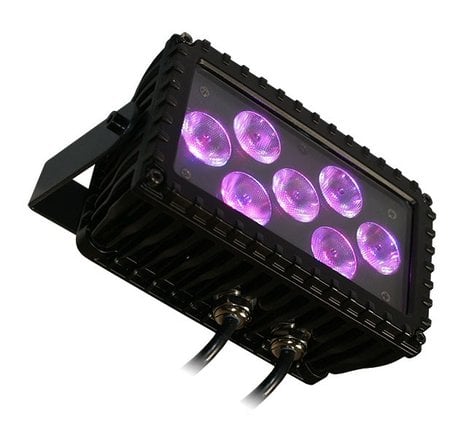

Blizzard Lighting Motif Sketch
7 x 3W LED Wash Fixture

OUR PART #:  MOTIF-SKETCH

Blizzard Lighting's Motif Sketchâ„¢ from Blizzard Lighting is rated IP65 to be exact (suitable for outdoor use).
Learn More
Selected Model Price: $199.99
List Price: $249.99
Save up to 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Blizzard Lighting Motif Sketch
Select model: (shipping times are approximate)
Qty:

Similar Products

Blizzard Lighting's Motif Sketchâ„¢ from Blizzard Lighting is rated IP65 to be exact (suitable for outdoor use). And you can control it thanks to an infrared remote (sold separately). And even though this fixture is small in stature, it makes up for it by being extra bright, thanks mainly thanks to its seven three-watt tri-color LEDs with custom-designed lenses. The Motif sketchâ„¢ can light up your surroundings - whether it’s in or on your home, office, shop, or... wherever. Sketchâ„¢ is Blizzard's first fixture designed specifically to beautify the many spaces of our lives off the stage. Available in black or white-please specify with you Sales Professional before purchase.

Blizzard Lighting Motif Sketch Features:

  • Exceptional RGB color mixing from 7x 3-watt TRI-color LEDs
  • Fully controllable via IR remote control (sold separately-pleasecontact your Sales Professional for more information)
  • Advanced heat sink design for zero fan noise
  • Secure mounting bracket
  • Multiple built-in color presets and auto programs
  • User adjustable program speed & fade times
  • 0-100% variable electronic dimmer
  • Variable electronic strobe
  • Durable cast aluminum housing
  • Tempered glass lens and watertight internal gaskets

Blizzard Lighting Motif Sketch Specifications:

  • Power:
    • Operating Voltage: 100-260VAC, 50-60 Hertz
    • Fuse: 2A 250V
    • Power Consumption: 23W
  • Light Source:
    • LED 7x 3-watt TRI-color LEDs, 100,000 hours.
  • Optical:
    • Beam Angle: 25°
  • Thermal:
    • Max. Operating Temp.: 104°F (40°C) ambient
  • Control:
    • Protocol: USITT DMX-512
    • DMX Channels: 3-channel
    • Input: 3-pin XLR Male
    • Output: 3-pin XLR Female
  • Operating Modes:
    • Standalone or Master/Slave
  • Weight & Dimensions:
    • Length: 6.29" (16 cm)
    • Width: 2.78" (7.5 cm)
    • Height: 3.54" (9 cm)
    • Weight: 2.87 lbs (1.3 kg)
  • Warranty:
    • 2-year limited warranty, does not cover malfunction caused by damage to LEDs.
IR Remote Control for Motif Sketch Fixtures
Blizzard Lighting Motif Sketch Remote IR Remote Control for Motif Sketch Fixtures
The Blizzard Lighting Motifâ„¢ Remote is an IR Remote Control for Blizzard's Motif Sketchâ„¢ and Motif Frescoâ„¢ architectural fixtures (sold separately). It lets you access, program, and control your Motif Sketch and Fresco ...
29.99 39.99 25
Usually ships in 7-14 business days.
