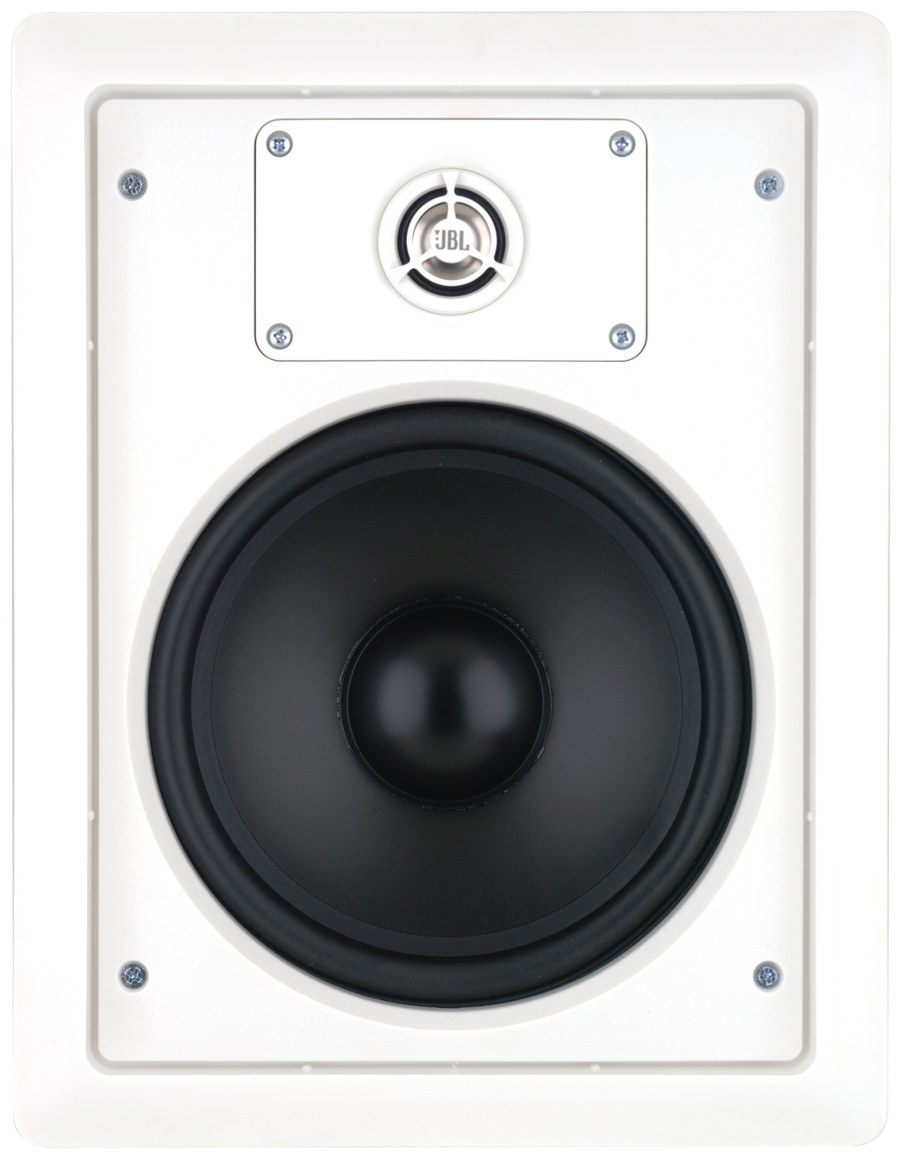

JBL Control 128W [B-STOCK ITEM]
8" 2 Way In-Wall Loudspeaker in White

OUR PART #:

JBL's Control 128W is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms...
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

JBL's Control 128W is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

NOTE: This is a B-STOCK item. It may have cosmetic flaws, but is guaranteed to be in proper working order. Please contact your sales representative for more information on this and other products.

JBL Control 128W Features:

  • 200 mm (8 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround
  • 25 mm (1 in) pure-titanium dome low-diffraction swivel aimable titanium tweeter
  • High-slope crossover for natural midrange sound
  • Extended bandwidth performance of 30 Hz – 20 kHz
  • 60 W continuous (120 W program, 240 W peak)
  • Power handling (128 W)

JBL Control 128W Specifications:

  • Frequency Range: 38 Hz - 20 kHz (-10 dB)
  • Power Capacity:
    200 W Peak
    100 W Continuous Program Power
    50WContinuous Pink Noise
  • Sensitivity: 90 dB SPL, 1W, 1 m (3.3 ft)
  • Nominal Impedance: 8 ohms
  • Low Frequency: 8" polymer-coated aluminum cone, pure butyl rubber surround.
  • High-Frequency: 1" pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
  • Terminations: Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
  • Crossover Network: 2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter.
  • Optimum Air Cavity Behind Speaker: 40 to 80 liters (1.4to 2.8 cu ft)
  • Dimensions: 13.1" H x 10.1" W x 4.3"D, 4.0" D front of wall to back of speaker
  • Maximum Wall Thickness: 1.25"
  • Cutout Size: 11.9" H x 8.9" W, Cutout template included
  • Net Weight (each): 5.5 lbs
  • Included Accessories: Cutout template & paint shield
