IDX Technology CW-1
Wireless HDMI Type Video Transmitter/Receiver


Reliable, compact and affordable, the CW-1 transmits uncompressed full HD 1920x1080.
Learn More
Our Price: $699.00
List Price: $777.00
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

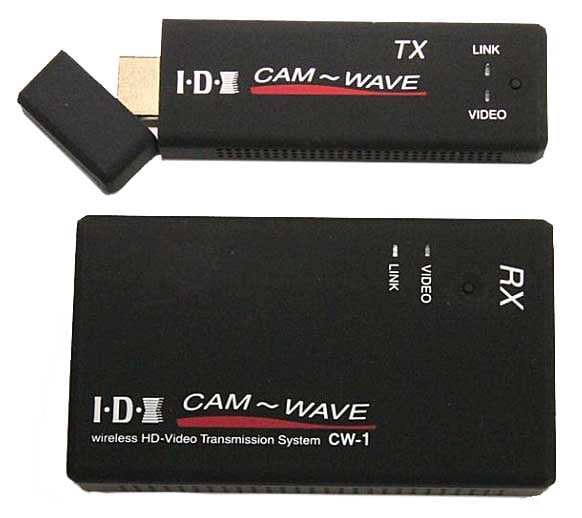

IDX Technology CW-1
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Reliable, compact and affordable, the CW-1 transmits uncompressed full HD 1920x1080. The HDMI type transmitter and receiver system delivers crystal clear images between 30-328ft. With latency less than 1ms, the CW-1 is ideal for real-time wireless monitoring applications. The compact design enables the CW-1 to easily mount on camera rigs of all shapes and sizes. The Dynamic Frequency Selection (DFS) feature minimizes interference and optimizes transmission by automatically choosing the least congested channel.

*Portable power options for the TX and RX are available.

IDX Technology CW-1 Includes:

  • (1) CW-1 TX
  • (2) CW-1 RX
  • (3) AC adapter for RX
  • (4) DC cable for AC adapter
  • (5) HDMI type angled adapter (Female to Female)
  • (6) HDMI type cable for RX
  • (7) USB cable for TX (for TX power supply)
      -  HDMI typecable/adapter for the TX is not included

IDX Technology CW-1 Features:

  • Extremely easy to use compact and light weight stick type TX and RX
  • Uncompressed wireless transmission system for HD and SD video
  • Utilizing WHDI (MIMO-OFDM) technology
  • 5GHz frequency band (license free)
  • Multiple video formats and frame rates
  • Video input/output: HDMI type
  • Zero frame delay; less than 1ms latency
  • Transmit HD video as far as 328ft (distance may vary)
  • Dynamic Frequency Selection (DFS) function uses less congested channels for optimal performance.
  • Conforms to major technical & environmental standards including FCC,CE, MIC (TELEC) and RoHS specifications.

IDX Technology CW-1 Specifications:

  • Frequency: 5.270 GHz—5.670 GHz
  • Freq. Selection: Automatic / DFS
  • Transmit Method: WHDI (MIMO)
  • Modulation: OFDM (Orthogonal Frequency Diversity Multiplexing)
  • Latency: Zero frame (less than 1ms)
  • Video/Audio: TX-HDMI type plug 1.3 / RX-HDMI type jack1.3
  • Video Formats: 1080/59.94i, 1080/50i, 1080/29.97p,1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p, 525i/59.94, 625i/50,525p/59.94, 625p/50, SXGA, XGA, SVGA, VGA
  • Power Requirement: DC5V (TX: Mini USB Type AB / RX:Pin Jack 3.5 x 1.35)
  • Power Consumption: TX: 3.5W max. / RX 5W max.
  • Dimensions:
    • TX (WxDxH): 3.6" x 1.2" x 0.6"
    • RX (WxDxH): 3.8" x 2.2" x 0.8"
  • Weight: 0.7oz (TX), 2.1oz (RX)

NOTE: IDX does not guarantee that CW-1 will work with all HDMI® devices.
