Product Overview

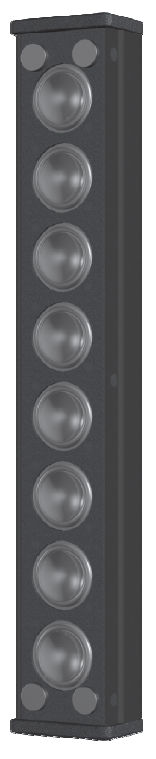

The Innovox Audio MLA-8 is an extremely slim line-source loudspeaker designed to present the absolute minimum visual profile (2” x 2” in cross section). The MLA-8 employs eight 1” fullrange inverted dome drivers in a continuous line array configuration. It is frequently used in a vertical orientation for delayed room fill applications. When oriented horizontally it can provide the wide vertical and narrow horizontal dispersion that is ideal for retail point of sale and museum displays. Applications include digital signage, museum displays, delay fill in large systems, teleconferencing/videoconferencing, and more.

Applications:

  • Digital signage
  • Museum displays
  • Delay fill in large systems
  • Teleconferencing / videoconferencing

Features

  • Ultra-slim profile (only 2" x 2" in cross section)
  • 140º H x 20º V coverage
  • Optimized for speech
  • 8 - 1" full-range inverted dome drivers
  • Sealed enclosure

Specifications

  • Frequency Response 200 – 12,000 Hz ± 3 dB
  • Sensitivity 84 dB @ 2.83 volts / 1M
  • Impedance 16 Ohms (4 Ohms available)
  • Power Handling 20 W long term (AES-2)
  • Maximum Output 99 dB long term; 103 dB peak
  • Nominal Coverage Angles 140º H x20º V.
  • System Configuration Ultra-slim continuous line array
  • Components & Loading (8) 1" full-range inverted dome drivers
  • Recommended High-Pass Filter 24 dB / octave @ 200 Hz
  • Enclosure Type Sealed enclosure
  • Enclosure Material Steel, aluminum, with composite endcaps
  • Connectors Dual binding-head screws
  • Suspension Hardware (4) #8-32 threaded points on back; (2) 1/4-20 threaded points on endcaps (2 slotted L-brackets provided)
  • Grille Perforated steel
  • Dimensions & Weight:
    • Height: 12.38"
    • Width: 2.00"
    • Depth: 2.06"
    • Net Weight: 4.5 lbs
