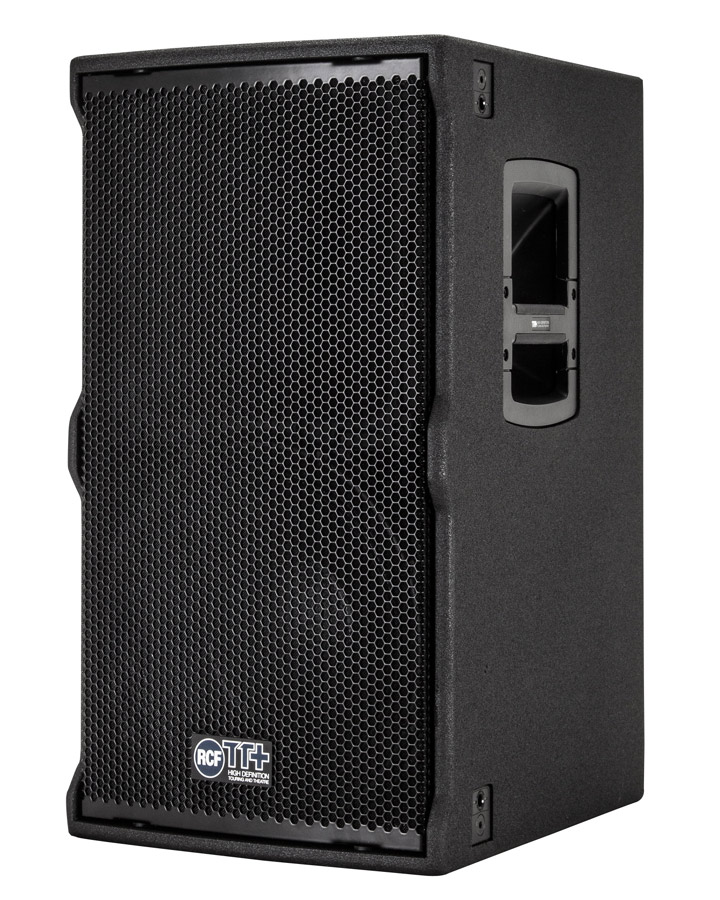

RCF TT2-A
12" 1600 Watt Active Monitor

OUR PART #  TT2-A

Our Price: $3,799.00
List Price: $5,299.00
You save 28%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TT2-A is the ideal compact two-way speaker for near field sound reinforcement, live sound and corporate events. The integration of the 1600 Watt, two channel, digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency. The speaker is equipped with a complete set of integrated rigging mechanics for rental or installation. Dedicated accessories to create clusters are available.

Features:

  • 1600 Watt, 2 way amplification
  • 12" neo woofer, 4" v.c.
  • 2" titanium dome neo compression driver, 3.0" v.c.
  • 90° x 50° precision waveguide
  • 96 Khz, 32 bit DSP processing
  • Maximum output, perfect audio fidelity
  • Tour grade cabinet and mechanics
  • RDNet Ready

Specifications:

Acoustical Specifications

  • Frequency Response -3 dB: 50 Hz ÷ 20 kHz
  • Max SPL: 134 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 50°
  • Compression Driver: 2" neo, 3.0" v.c.
  • Woofer: 12" neo, 4.0 v.c.
  • Input/Output Section
  • Input connectors: XLR, RDNet
  • Output connectors: XLR, RDNet
  • Input sensitivity: +4 dBu

Processor Section

  • Crossover frequencies: 750 Hz
  • Protections: Thermal, rms
  • Limiter: soft limiter, dynamic
  • Controls: Gain reduction, RDNet local setup/bypass, Time Delay, Presets(Linear, Close, Far listening, High-pass), RDNet Ready

Amplifier Specifications

  • Total power: 1600 W RMS
    -High frequencies: 500 W RMS
    -Low frequencies: 1100 W RMS
  • Cooling: convection
  • Connections: Powercon In-Out

Cabinet

  • Cabinet Material: Baltic birch plywood
  • Hardware: Installation/Rental fittings
  • Handles: 2 side
  • Pole Mount/Cap: yes
  • Colour: black

Physical Specifications

  • Height: 25.31 inch
  • Width: 14.64 inch
  • Depth: 18.50 inch
  • Net Weight: 74.95lbs

Click to download

RCF TT2-A
12" 1600 Watt Active Monitor

OUR PART #  TT2-A

Product Videos:

Product Information:

The TT2-A is the ideal compact two-way speaker for near field sound reinforcement, live sound and corporate events. The integration of the 1600 Watt, two channel, digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency. The speaker is equipped with a complete set of integrated rigging mechanics for rental or installation. Dedicated accessories to create clusters are available.

Features:

  • 1600 Watt, 2 way amplification
  • 12" neo woofer, 4" v.c.
  • 2" titanium dome neo compression driver, 3.0" v.c.
  • 90° x 50° precision waveguide
  • 96 Khz, 32 bit DSP processing
  • Maximum output, perfect audio fidelity
  • Tour grade cabinet and mechanics
  • RDNet Ready

Specifications:

Acoustical Specifications

  • Frequency Response -3 dB: 50 Hz ÷ 20 kHz
  • Max SPL: 134 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 50°
  • Compression Driver: 2" neo, 3.0" v.c.
  • Woofer: 12" neo, 4.0 v.c.
  • Input/Output Section
  • Input connectors: XLR, RDNet
  • Output connectors: XLR, RDNet
  • Input sensitivity: +4 dBu

Processor Section

  • Crossover frequencies: 750 Hz
  • Protections: Thermal, rms
  • Limiter: soft limiter, dynamic
  • Controls: Gain reduction, RDNet local setup/bypass, Time Delay, Presets(Linear, Close, Far listening, High-pass), RDNet Ready

Amplifier Specifications

  • Total power: 1600 W RMS
    -High frequencies: 500 W RMS
    -Low frequencies: 1100 W RMS
  • Cooling: convection
  • Connections: Powercon In-Out

Cabinet

  • Cabinet Material: Baltic birch plywood
  • Hardware: Installation/Rental fittings
  • Handles: 2 side
  • Pole Mount/Cap: yes
  • Colour: black

Physical Specifications

  • Height: 25.31 inch
  • Width: 14.64 inch
  • Depth: 18.50 inch
  • Net Weight: 74.95lbs

Click to download
