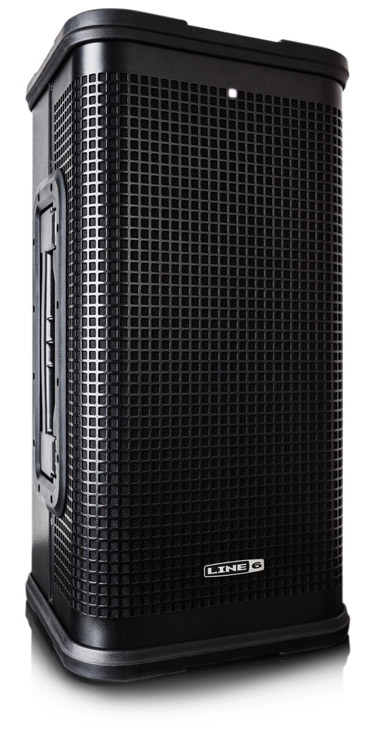

Line 6 StageSource L2m
Versatile PA System with Digital Network Capability

OUR PART #:  STAGESOURCE-L2M

The Line 6 StageSource L2m combines multi-function design...
Learn More
Our Price: $749.99
List Price: $1,259.99
You save 40%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Line 6 StageSource L2m
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Line 6 StageSource L2m combines multi-function design, powerful DSP and precision components to deliver the perfect blend of performance and scalability in a compact package for musicians on the go. With speaker performance modes, feedback suppression, onboard orientation sensors and integrated digital networking, the Line 6 StageSource L2m delivers best-of-class performance across the widest variety of live sound applications.

Line 6 StageSource L2m Features:

  • DSP-powered speaker performance modes for great live sound in any application
  • Multi-function design for true scalability
  • L6 LINK™ digital networking for multi-speaker setups
  • 800-watt, 2-way, bi-amped speaker system
  • Multi-band feedback suppression
  • On-board accelerometer and pole-mount sensors
  • Virtual Tilt-back projects speaker’s output upwards in backline mode
  • Tour-grade plywood enclosure with M10 suspension points
  • Retractable handle for easy portability

Line 6 StageSource L2m Specifications:

  • System Type: 10", 2-way, bi-amplifi loudspeaker system
  • Frequency Range (-10dB): 44Hz to 19kHz, (Reference/P.A. Speaker Mode, free-field)
  • Frequency Response (±3dB): 51Hz to 18kHz, (Reference/P.A. Speaker Mode, free-field)
  • Maximum SPL Output: 128dB peak @ 1 meter (unweighted, measured indoors with music program material)
  • Coverage Pattern (-6dB): 100° horizontal x 50° vertical
  • Directivity Factor (Q): 9.2 (averaged 1kHz to 16kHz)
  • Directivity Index (DI): 9.6dB (averaged 1kHz to 16kHz)
  • Crossover Frequencies: LF to HF Crossover - variable, 2.2kHz to 7.0kHz (Speaker Mode dependent)
  • Low-Frequency Transducer: 10" extended range woofer, 2" diameter voicecoil, 4 Ohm impedance
  • High-Frequency Transducer: 1" exit compression driver, 1.4" diameter voicecoil and diaphragm, 8 Ohm impedance
  • Input Types: Line-level XLR-1/4", balanced Stereo RCA, unbalanced L6 LINK XLR
  • Input Impedance: 100 kOhm balanced 20 kOhm balanced N/A
  • Max Input Levels: +20dBu +16dBV N/A
  • Onset of Limiting: +6dBu input (Reference/P.A. Speaker Mode, Master Level control at center-detent)
  • -6dBu input (Reference/P.A. Speaker Mode, Master Level control at maximum)
  • Output Types: Balanced Loop Thru XLR Balanced Mix Out XLR L6 LINK XLR
  • Output Impedances: Source-dependent 680 Ohms balanced N/A
  • Controls: Feedback Suppression On/Off/Mode, Master Level, Speaker Mode
  • Indicators: Signal Present/Clip, Feedback Suppression On/Off/Mode, Limit, 6x Speaker Mode, L6 LINK Status

Digital Signal Processing

  • Speaker Modes: Reference/P.A., Playback, Floor Monitor, Keyboards, Acoustic Guitar, Electric Guitar
  • On-board Effects: Feedback Suppression
  • Transducer Protection: Excursion limiting, thermal limiting
  • Digital Networking: L6 LINK intelligent speaker networking system
  • Sensors: Speaker orientation, pole sensor, power amp temperature, power supply temperature

Power Amplification and Supply

  • Output Channel: HF LF
  • Power Amplifier Type: Class AB Class D
  • Peak Output Power: 175 watts 655 watts
  • Power Supply Voltage Range: 100 - 240 VAC, ± 10%, 50/60Hz , automatic voltage selection
  • Power Consumption: 250 watts (1/8th power)
  • Cooling: Digitally-controlled, variable-speed 50mm fan
  • Protection: Output overcurrent, overtemperature, DC fault

Mechanical

  • Enclosure: 15mm enclosure, 18mm baffle, multi-ply hardwood, textured black paint, bass reflex design
  • Floor Monitor Upward Angle: 60° using kickstands, 30° using handle
  • Suspension Points: M10 x 1.5 threaded inserts, qty: 4
  • Pullback Point: M10 x 1.5 threaded insert, qty: 1
  • Grille: 18-gauge perforated steel, black powder coat finish
  • Pole Cup: 35 mm pole cup with sensor
  • Dimensions (HxWxD): 23.75" (603 mm) x 12.25" (312 mm) x 12.25" (312 mm)
  • Weight: 39.1 lb (17.7 kg)
for StageSource L2t , L2m
Line 6 L2tm Speaker Bag for StageSource L2t , L2m
The Line 6 L2tm Speaker Bag allows you to easily transport and protect your StageSource L2t or L2m speaker.  This heavy-duty padded bag featuring handles and built-in wheels.
84.99
