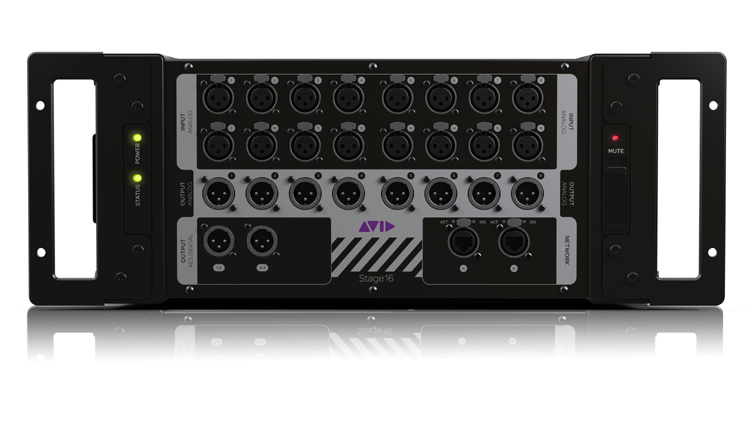

Avid Stage 16
Ethernet AVB Remote I/O Stage Box for S3L System

OUR PART #:  STAGE-16

AVID's Stage 16 remote I/O box features a flexible, ruggedized design with dual-purpose rack ears/handles for use as a stage box or rack-mounted.
Learn More
Our Price: $3,495.00
Write the first review.
Avid Stage 16
Qty:
In Stock
Related Products

AVID's Stage 16 remote I/O box features a flexible, ruggedized design with dual-purpose rack ears/handles for use as a stage box or rack-mounted. It offers a plethora of I/O connectivity, including analog and digital (AES3) inputs and outputs as well as two Gigabit Ethernet AVB ports, featuring latching etherCON connectors. Stage 16 remote I/O boxes allow your system to grow as your needs do.

Features:

  • 16 analog inputs (XLR) with remote microphone preamp control
  • 8 analog line outputs (XLR)
  • 4 channels of AES3 digital output
  • Power and status LEDs, with device Identify feature
  • Sliding Mute switch silences all box outputs

Specifications:

  • Analog inputs: 16 XLR mic inputs/preamps
  • Analog outputs: 8 XLR line outputs
  • Digital outputs: 4 channels of AES3 input and output
  • Dimensions (H x W x D):
    • 6.9" H x 19" W x 8.1" D (17.6 x48.3 x 20.6 cm) with ears/handles out (rackmount configuration)
    • 6.9" H x 15.6" W x 7.9" D (17.6 x 39.6 x 20.2 cm) without ears/handles
  • Rack spaces: 4RU
  • Connections: 2 Gigabit Ethernet AVB ports (up to four Stage 16 boxes can be daisy-chained)
  • Snake cable type: Shielded 350 MHz Cat5e or better (Neutrik etherCON connectors required )
  • Maximum snake cable length: 328 feet (100 meters)

Click to download
