IOGEAR GCE500U
USB VGA KVM Console Extender

OUR PART #:  GCE500U

The IOGEAR USB VGA KVM Console Extender allows access to a PC with USB or USB KVM switch from a remote USB VGA console (VGA monitor, USB keyboard...
Learn More
Our Price: $299.99
List Price: $339.95
You save 12%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

IOGEAR GCE500U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

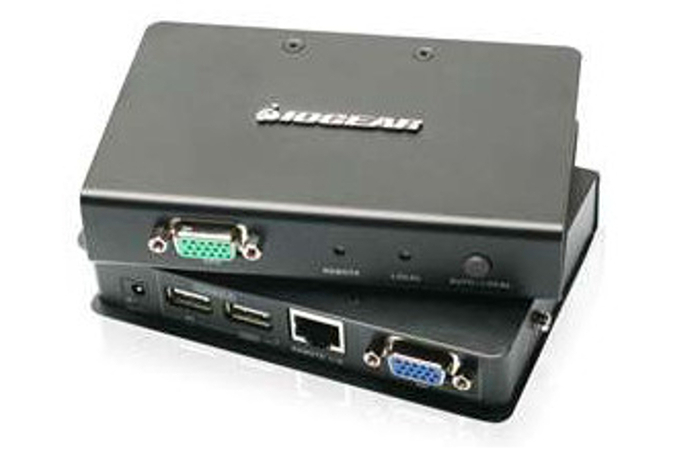

The IOGEAR USB VGA KVM Console Extender allows access to a PC with USB or USB KVM switch from a remote USB VGA console (VGA monitor, USB keyboard, and USB mouse) via CAT5e/6 cable up to 500 feet away.

This unit is perfect for moving the console away from the computer or the KVM switch.  Your console can be moved out of the server room to a location that may be more comfortable and quieter.  It is also useful for security and monitoring purposes; you can place the unit in a secure area at the same time that you put the console in the most convenient location for user access and monitoring.

A USB VGA KVM Console Extender is a cost-effective solution because it uses inexpensive UTP (CAT5e/6) cabling to extend the distance, versus expensive and bulky coaxial cabling. It is easy to install and operate thanks to its Auto Signal Compensation (ASC) technology, which senses the distance and adjusts the signal levels accordingly so there is no need to do any DIP switch setting.   It also provides a built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility

Requirements:

  • A Solid CAT5e/6 Cable
  • Console:
    • VGA, SVGA, SXGA, UXGA, WUXGA or multi-sync monitor
    • USB keyboard and mouse
  • Computer:
    • VGA, SVGA, SXGA, UXGA, WUXGA or multi-sync video output
    • An available USB port

IOGEAR GCE500U Includes:

  • 1x GCE500U Local Unit
  • 1x GCE500U Remote Unit
  • 2x Rack Mount Kit
  • 1x USB KVM Cable
  • 2x Grounding Wire
  • 2x Power Adapter
  • 1x Installation Guide
  • 1x Warranty Card

IOGEAR GCE500U Features:

  • Extend your KVM console (VGA monitor, USB keyboard & mouse) connectionup to 500 ft. via CAT5e cables
  • Auto Signal Compensation (ASC) helps make installation easy, with no needto configure DIP switches
  • Built-in Application-Specific Integrated Circuit (ASIC) for greaterreliability and compatibility
  • Dual Console Operation - Control your system from either the local orremote console
  • Built-in 8KV ESD protection and 2KV surge protection
  • Maximum video resolution up to:
    • 1920 x 1200 @ 60Hz (100 ft. -30m)
    • 1600 x 1200 @ 60HZ (330 ft. - 100m)
    • 1280 x 1024 @ 60Hz (500 ft. -150m)
  • USB over-current detection and prevention
  • Easy To Operate - Push button selection between local and remote console
  • Local monitor supports DDC; DDC2; DDC2B
  • Rack Mountable (rack mount kit included)
  • Plug-N-Play - No need for any software driver installation
  • 3-year Warranty

IOGEAR GCE500U Specifications:

  • Console Connectors:
    • Monitor: 1x HDB-15 Female
    • Keyboard: 1x USB Type A Female
    • Mouse: 1x USB Type A Female
  • CPU Connectors:
    • Keyboard, Mouse, and Monitor: 1x SPHD-17 Female(Green)
  • Unit to Unit Connectors: 1x RJ45 Female
  • Power Connections: 1x DC Jack
  • Function Keys: 1x Operating Mode Pushbutton
  • LEDs:
    • Local: 1x Local; 1x Remote
    • Remote: 1x Remote; 1xLink
  • Emulation:
    • Keyboard: USB
    • Mouse: USB
  • Power Consumption:
    • Local: DC5.3V, 2.31W
    • Remote: DC5.3V, 2.84W
  • Power:
    • Voltage: DC5.3V
    • Amps: 0.94A
  • Video Resolution: Up to 1920x1200@60Hz
  • Cable Distance: Up to 495ft (150m)
  • Environment:
    • Operation Temperature: 0~50°C
    • StorageTemperature: -20~60°C
    • Humidity: 0~80% RH; Non-condensing
  • Housing: Metal Case
  • Unit Dimensions (WxHxD): 5" x 1" x 3.375"
  • Unit Package Dimensions (WxHxD): 11.25" x 7" x 4"
  • Unit Pack Weight: 3.28 lbs
  • Unit Weight with accessories: 2.74 lbs
  • Unit Weight: 1.41 lbs
