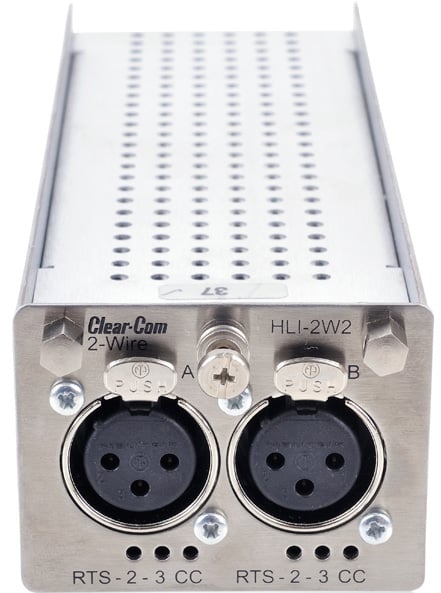

Clear-Com HLI-2W2 HelixNet 2-Wire Interface Module

In combination with a HelixNet Main station, the HLI-2W2 interface module allows seamless connectivity to almost all common two-wire audio systems. Plug the HLI-2W2 into one of the rear panel slots of the main station, (sold separately) and a pair of 3-pin XLR connectors on the HLI-2W2 send the audio to connected intercom lines such as Clear-Com or RTS, assignments can be made via the main station menu. Requires external partyline power source.

Features

• Intercom Line Connectors: (2) 3-pin XLR–F
• Accepts both two-wire and four-wire optional interface modules
• Auto-nulling and Echo Cancellation
• RTS/Clear-Com Selectable
• Fits within one of the three rear panel interface slots of an HMS-4X main station

Specifications

• Dimensions: 7.36" x 2.24" x 1.54" (187 x 57 x 39 mm)
• Weight: 16 oz (0.454 kg)
• Intercom Line Connectors: (2) 3-pin XLR–F
• Partyline:
• Maximum Level Before Clipping: 6dBu
• Nominal Input Level: -18dBu (C-C), -12dBu (RTS)
• Input Impedance: >= 10KO bridging
• The following specified for a route to four-wire input at 0dBu in:
  • Frequency Response: 100 Hz - 10 kHz ±3dB
  • Distortion: < 0.2% THD @ 1kHz
  • Noise: < -55dBu
• The following specified for a route from a four-wire output at 0dBu out:
  • Frequency Response: 40 Hz - 10 kHz ±3dB
  • Distortion: < 0.2% THD @ 1 kHz
  • Noise: < -75dBu
• Auto-nulling and Echo Cancellation
• RTS/Clear-Com Selectable
• Termination: External
• Power: 30V max external
• Power Requirements:
  • 0.025mA/channel
  • DC Voltage Range: 20-30 volts
