Clear-Com HLI-4W2
HelixNet 4-Wire Interface Module

OUR PART #:  HLI-4W2

HelixNet Main Stations accept linking as well as two-wire and four-wire optional interface modules...
Learn More
Our Price: $859.50
List Price: $955.00
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Clear-Com HLI-4W2
Qty:
In Stock

Similar Products

HelixNet Main Stations accept linking as well as two-wire and four-wire optional interface modules, offering seamless connectivity to LAN and virtually all common two-wire and four-wire audio systems.

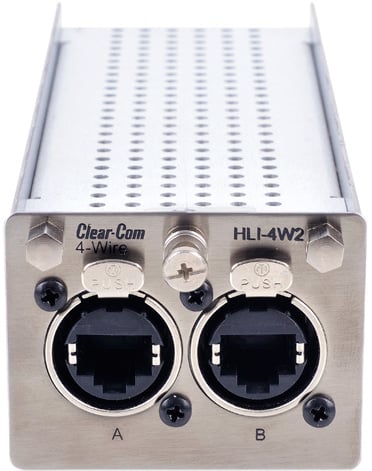

Clear-Com's HLI-4W2 Interface Module provides an easy way to interface common four-wire audio paths such as matrix ports, cameras, and telephone circuits with a HelixNet Main Station.  Each of the two ports employ both transformer and electrical balancing to ensure incoming and outgoing audio paths are free of hum and noise.

Technical Specifications:

Dimensions: 7.36" x 2.24" x 1.54" (187 x 57 x 39 mm)

Weight: 13oz (0.35 kg)

Connectors: Intercom Line: (2) RJ-45 (Ethercon)

Four-wire Option Module Inputs:

  • Maximum Level Before Clipping: 18dBu
  • Nominal Input Level: 0dBu (selectable)
  • Input Impedance: >= 10KO
  • The following specified for a route to four-wire output at 0dBu out:
    - Frequency Response: 20Hz - 10kHz ┬▒3dB
    - Distortion: <0.2% THD @ 1kHz
    - Noise: <-65dBu

Four-wire Option Module Outputs:

  • Maximum Level Before Clipping: 18dBu
  • Nominal Output Level: 0dBu (selectable)
  • Output Impedance: <= 100O
  • The following specified for a route from a dynamic headset:
    - Frequency Response: 300 Hz - 12 kHz ┬▒3dB
    - Distortion: <0.1% THD @ 1 kHz
    - Noise: <-55dBu
