Ashly ne8800d 8x8 Network Protea DSP Processor with AES3 Input Option

OUR PART #: NE8800D

Copied to clipboard

The Ashly ne8800D networkable DSP processor features 32-bit SHARC devices to insure that you won’t run out of DSP. ...Read more

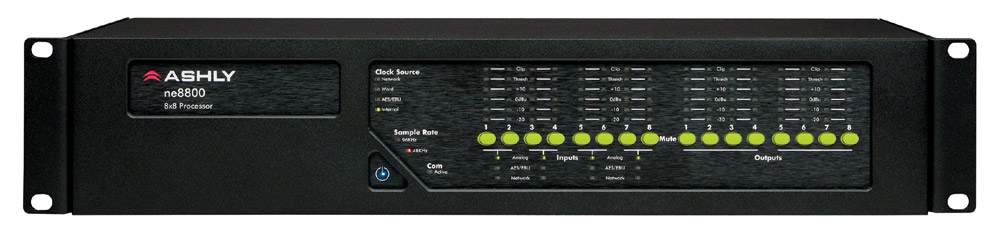

Ashly ne8800d 8x8 Network Protea DSP Processor With AES3 Input Option Image 1
Ashly ne8800d 8x8 Network Protea DSP Processor With AES3 Input Option Image 2
Ashly ne8800d 8x8 Network Protea DSP Processor With AES3 Input Option
Our Price: $3,299.00
List Price: $4,099.00
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$92/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Ashly ne8800D networkable DSP processor features 32-bit SHARC devices to insure that you won’t run out of DSP. New features added to the NE-series processors include gain-sharing automatic microphone mixers, automatic feedback suppression and ambient noise compensation. Ashly’s NE processors offer industry-leading Signal/Noise ratings. They are a great choice for Worship facilities, meeting rooms and anywhere you need an unattended sound system.

The DSP signal processing library is extensive and utilizes multiple SHARC 32-bit/96kHz processors with sample rates of either 48 KHz or 96 KHz. Processing blocks include an 8x8 matrix mixer, a full array of variable Q graphic and parametric equalization, crossover filters to 8th-order Butterworth, Bessel, Linkwitz, and Notched-Linkwitz, an extremely advanced automatic feedback suppressor, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, time delay up to 1365 ms on every channel, sinewave, pink noise, and white noise generators.

All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Ashly's Protea NE Software on a PC platform. Hot-plug software control allows you to plug any function into any channel block even when running live audio with no latency or recompiling necessary. Automatic DHCP network IP configuration reduces network set up time. No front panel controls and multi-level software security with password access assures you a tamperproof audio system.

Additional features include: network audio routing at matrix mixer to inputs from outputs, or in/out of matrix mixer, 8 link groups on most functions, automatic master clock switchover between network, word clock, AES/EBU, and internal clock, a high-performance analog audio path - dynamic range exceeding 114dB, support of Ashly digital remote controls, programmable 8 channel 5V logic input or output control, 8 channels of 0 to 5V analog level control, word clock input and output and a front panel full meter bridge with mute keys.

Ashly ne880D Features:

  • 10/100 Ethernet and RS-232 computer interface is standard
  • Extensive DSP available
  • Easy and intuitive user interface
  • 24-bit A/D-D/A audio resolution
  • 32-bit SHARC DSPs
  • Sample rates of 48kHz and 96kHz
  • Hot-plug software control
  • Automatic DHCP network IP configuration
  • Butterworth, Bessel, Linkwitz, and Notched-Linkwitz filters
  • Advanced automatic feedback suppression
  • Word clock input and output
  • Euroblock connectors for audio, preset recall, DC remote level control anddata in/out
  • Four dedicated remote controls for Level, Logic I/O and ProgrammableFunctions
  • Third party control friendly
  • Input and output metering
  • Multi-level Security

Ashly ne8800D Specifications:

  • Rear Panel:
    • 10/100 Ethernet port
    • RS-232 port
    • Euroblock inputs
    • Euroblock outputs
    • Four option bays
    • Word clock in and out
    • Logic I/O
    • Data in and out ports
    • On/Off switch
  • Accessories Available
    • WR-1 2-ch Level Control
    • WR-2 Four Position Switch
    • WR-5 Programmable Selector
    • RD/RW8C 8-ch Level Control
  • Overall Sonic Performance
    • Analog in, digital out
      • Frequency Response, 20Hz-20kHz:+/-0.1dB
      • Dynamic Range, 20Hz-20kHz, unweighted: >115dB
      • THD+N, 1kHz,+20dBu analog (-1dBFS digital): < 0.001%
      • Latency at 48kHz (96kHz): 1.42ms(0.71ms)
    • Digital in, analog out
      • Frequency Response, 20Hz-20kHz:+/-0.25dB
      • Dynamic Range, 20Hz-20kHz, unweighted: >114dB
      • THD+N, 1kHz,+20dBu analog (-1dBFS digital): < 0.002%
      • Latency at 48kHz (96kHz): 0.90ms(0.45ms)
    • Analog in, analog out
      • Frequency Response, 20Hz-20kHz:+/-0.25dB
      • Dynamic Range, 20Hz-20kHz, unweighted: >114dB
      • THD+N, 1kHz,+20dBu analog (-1dBFS digital): < 0.002%
      • Latency at 48kHz (96kHz): 2.21ms(1.11ms)
    • Digital in, digital out
    • Frequency Response, 20Hz-20kHz: NA
    • DynamicRange, 20Hz-20kHz, unweighted: NA
    • THD+N, 1kHz, +20dBu analog (-1dBFSdigital): < 0.00001%
    • Latency at 48kHz (96kHz): 0.10ms (0.05ms)
  • Inputs/Outputs
    • Analog Audio Inputs: Active balanced Euroblock
      • Input Impedance: 20kohms
      • Max Input Level: +20dBu
    • Digital Audio Inputs: Transformer balanced female XLR
      • Input Impedance:110 ohms
      • Max Input Level: 7.0Vp-p
    • Analog Audio Outputs: Servo-balanced Euroblock
      • Output Impedance: 20ohms
      • Max Output Level: +20dBu
    • Digital Audio Outputs: Transformer balanced male XLR
    • Output Impedance:110 ohms
    • Max Output Level: 5.0Vp-p
  • Digital Audio Hardware
    • Sample Rates: 48kHz, 96kHz
    • DSP Processing: 32-bit floating-point SHARC processor array
    • Audio Input Source Selection: Selectable in adjacent channel pairs fromanalog, digital, or network inputs
    • Network Audio Routing: Selectable between Input/Output or internal tomatrix mixer
    • Digital Audio Output Jitter: 0.5ns average, 1.0na peak
  • Digital Control
    • Ethernet Control: Standard RJ45 10/100 Ethernet with auto-configuration
    • RS-232 Control: Standard female Dsub9 jack
    • 4-pin Active Remote: 4-pin Euroblock for phantom-powered bi-directionalremotes
    • Logic Input: 9-pin Euroblock for (8) assignable 5V logic Inputs
    • Logic Outputs: Shared with logic inputs. +12V at 10mA output high, 100mAinput low
  • Analog Control
    • Remote Attenuators: 10-pin Euroblock for (8) assignable 0-5VDC passiveremote attenuators

General Specifications

  • Power Requirements: 90-240 VAC, 50-60Hz, 70W maximum
  • Shipping Weight: 14 lbs
  • Dimensions (L x H x D): 19" x 3.5" x 8.5"
  • Environmental: 40-120 deg. F, noncondensing
  • DSP Functions
    • Automatic Feedback Suppressor
      • Filters: 12
      • Detection Frequency Range:25Hz-20kHz
      • Filter Modes: Floating, restricted, manual,locked
      • Sensitivity Control: 5 levels
      • Floating Filter Reset: 5 seconds to24 hours
    • Parametric EQ: 10-, 6-, 4- and 2-band
    • Graphic EQ: 31-band, constant or proportional Q
    • Crossover Filters: Linkwitz-Riley, Notched Linkwitz-Riley, Bessel,Butterworth
    • Low-Pass and High-Pass Filters: Linkwitz-Riley, Notched Linkwitz-Riley,Bessel, Butterworth
    • Notch: 1/64 oct. to 4 octaves
      • Frequency Range: 20Hz-20kHz, 1Hzincrements
    • Band-Pass
      • Frequency Range: 20Hz-20kHz, 1Hz increments
      • Bandwidth:1/64 oct. to 4 octaves
    • All-Pass: Second-Order (-180 degrees)
    • Vari-Q LPF and HPF: Second-order
      • Frequency Range: 20Hz-20kHz, 1Hzincrements
      • Filter Q: Adjustable from 0.267 to 3.047
    • Shelving Filters: Selectable 6dB/oct. or 12dB/oct.
      • Frequency Range:20Hz-20kHz in 1Hz increments
      • Boost/Cut Range: -15dB to +15dB, 0.1dBincrements
    • Additional DSP Blocks
    • Delay: Up to 1.365 seconds
    • Ducker: Duck atinput or in mixer
    • Gate: Frequency keyable
    • Signal Generator: Sinewave,white and pink noise
    • MatrixMixer
    • Compressor
    • Limiter
    • Autoleveler
