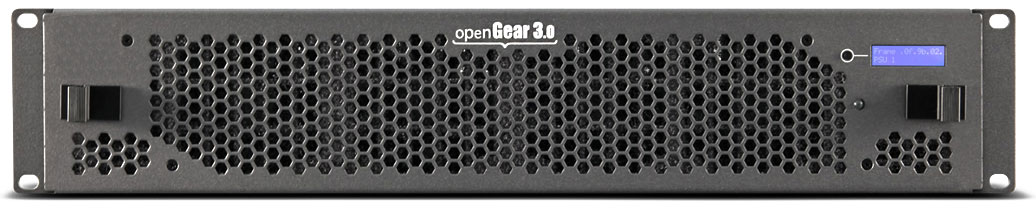

Blackmagic Design OG3-FR-CNS-P
openGear® 3.0 21-Slot Frame with Cooling, Advanced GigE Network Control and SNMP

OUR PART #:  OG3-FR-CNS-P

Blackmagic Design's openGear® 3.0 is the evolution of the industry's first and only open hardware and software platform.
Learn More
Our Price: $2,199.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design OG3-FR-CNS-P
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
Blackmagic Design's openGear® 3.0 is the evolution of the industry's first and only open hardware and software platform. The next generation openGear® frame, OG3-FR combines function, flexibility and power with advanced features like high powered 450 watt redundant power supplies, Gigabit Ethernet access to every card slot, 20 openGear® card slots, dedicated 21st and 22nd card slots for network control and internal reference distribution, and a front LCD display for easy frame, IP address and fault identification.

Features:

  • Robust 450 watt power supply with integral cooling
  • Standard Ethernet connectivity
  • Included advanced Ethernet based frame controller with GigE toevery slot
  • Included SNMP control and monitoring
  • 2RU frame houses up to 20 openGear® cards
  • Supports any mix of analog, digital, video and audio modules in the sameframe
  • Modular I/O panels for connector flexibility
  • Removable front door for easy fan servicing
  • Frames come standard with cooling
  • Front LCD display for name, IP and fault identification
  • 2 independent looping references with connection to each card slot
  • Optional redundant power supply, hot-swappable for 24/7 operation
  • 5-year transferable warranty

Modular Frame Architecture
The OG3-FR offers the flexibility of independent rear modules for connectivity to a wide array of interfaces such as BNC, twisted-pair audio, and fiber. The independent rear modules are available in different I/O configurations for select cards, including high density split rear modules allowing up to 20 independent openGear® cards in the OG3 frame.

Robust Power Supplies
The OG3-FR can accommodate 2 front-loaded PS-OG3 power supplies. The split outside location of the power supplies makes installation a breeze when utilizing an alternate phase power source. A single 450 watt supply can fully power a loaded frame, and the addition of a second (optional) supply gives the frame full power redundancy. Each power supply contains an independent cooling fan, status LED, and a frontmounted power switch.

Cooling
The frame has been designed with an advanced cooling architecture with increased ventilation. Front door mounted cooling fans provide forced air cooling to all cards with front to back cooling. An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature. The front door assembly can be removed without tools for quick and easy maintenance.

Control
The OG3-FR comes standard with Ethernet connectivity for basic configuration and monitoring of openGear® cards through the DashBoard control system. An optional advanced networking card, the MFC-8322-N, adds an on-board Gigabit Ethernet switch, with GigE access to each of the 20 processing card slots. The advanced networking control also allows multiple DashBoard connections and adds advanced features such as DataSafe and optional SNMP.

Gigabit Ethernet
The openGear® 3.0 frame offers optional gigabit Ethernet to every slot within the OG3-FR chassis, enhancing communication speed, and connection options to all openGear® cards. The openGear® 3.0 frame provides more communication options and flexibility to openGear® card manufacturers; ultimately enhancing the openGear platform and experience. The 21-port Ethernet switch, built in to the frame's network control card, future-proofs the openGear® 3.0 platform for users and openGear® partners for years to come. Gigabit Ethernet is only available with the Advanced Network Control option.

SNMP
openGear® supports SNMP offering an industry standard interface for system wide monitoring applications

DataSafe
DataSafe dramatically reduces downtime when failed modules are swapped out. All module parameters are stored on the local frame network card and automatically restored when a hot-swap is performed.
