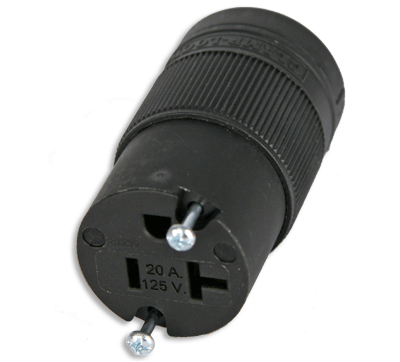

Lex Products Corp X520C
NEMA 5-15 20A Lex-Loc Edison Female Connector

OUR PART #:  X520C

Lex Products' X520C is a NEMA 5-15, 20 Amp, 2 Pole...
Learn More
Our Price: $13.77
List Price: $18.00
You save 24%!
Write the first review.

Related Products

Lex Products' X520C is a NEMA 5-15, 20 Amp, 2 Pole, 3 Wire, 120 VAC Lex Loc Edison female connector

Markets Served: Theatrical, Motion Picture, Live Events, Industrial, Military

Application: Female connector for use on extension cords.

Lex Products Corp X520C Features:

  • Cage clamp terminations cannot loosen, eliminating the main cause of device failure
  • No tools needed for wire termination. Simply open and close the terminals.
  • Two fast-travel assembly screws and terminal design saves time and reduces labor requirements
  • All-black color blends into scenery
  • External cord clamp design provides excellent strain relief for a wide range of cord sizes

Lex Products Corp X520C Specifications:


  • Housing and Body: Nylon – Tough and resistant to awide range of chemicals. UL Recognized for 125°C continuous use. UL 94V-2
  • Flammability Index. Beveled design to resist snagging. Blades and Contacts: Solid brass for excellent conductivity
  • Terminal Cover: Clear polycarbonate – terminals visible Assembly Screws:Two U-drive combination slot/crosshead


  • Accommodates 18/3 SJ through 10/3 S cable
  • Cord Accommodation (with inserts): .300''- .430''
  • Cord Accommodation (inserts removed): >.430''- .655''


  • Dielectric Withstand Voltage: >3,000V
  • Heat Rise: Maximum 30°C after 100 cycles at 150% of rated current
  • Current Interrupting: Yes
  • U.L.Listed File EE322951
  • C.S.A.Cer tified File LR81290
