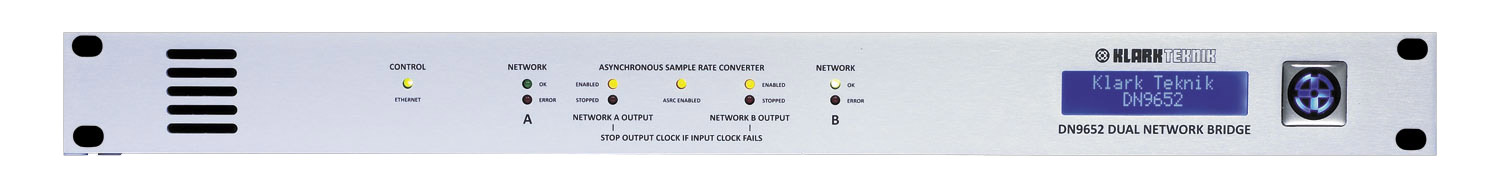

Klark Teknik DN9652
Digital Audio Converter

OUR PART #:  DN9652

The DN9652 dual network bridge has been designed to allow two dissimilar digital audio networks to interface simply and reliably.
Learn More
Our Price: $1,499.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Klark Teknik DN9652
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DN9652 dual network bridge has been designed to allow two dissimilar digital audio networks to interface simply and reliably. There are many different multichannel digital audio protocols available today. Some are well established and have been in common use for several years, others have appeared recently, and all are vying for recognition and market share. Interfacing different protocols can be difficult and expensive, often requiring the use of inflexible, proprietary hardware. Connecting different audio networks together, which often have differing sample rates and clock domains can be a difficult and expensive process.

Currently available interfaces include:

  • Audinate Dante
  • Aviom A-Net
  • Cirrus Logic CobraNet
  • Digigram EtherSound
  • MADI (AES10)

The DN9652 Dual Network Bridge supports network modules designed and manufactured by Cirrus Logic, Inc., Lab X Technologies, LLC, and Audinate Pty Ltd.

Clock Synchronisation

The DN9652 clock synchronisation scheme is divided into two domains (A & B) for each of the two network module interfaces.

Each Network Clock Domain may select from:

  • External Network Clock
  • External Network Clock with Word Clock In Synchronisation
  • DN9652 Onboard Oscillator
  • Network Module Onboard Clock
  • Clock selection from other Network Module
  • Word Clock In
  • Video Black Burst In

Features and Specifications:

  • Two network interfaces each supporting up to 64 bidirectional channels at up to 24-bit 96 kHz audio
  • 1:1 channel mapping between Network Module interfaces
  • Bidirectional Asynchronous Sample Rate Conversion (ASRC) on every channel with Bypass facilit
  • User-selectable bidirectional Stop Output Clock facility if Input Clock fails function, to propagate network failures across ASRC for automatic or manual redundancy switchover
  • Data format word length truncation and dithering
  • Ultra-high stability reference-grade 1 part-per-million (1 ppm) temperature-controlled clock oscillator
  • Supports operation at 44.1 kHz, 48 kHz and 96 kHz sampling frequencies
  • Flexible third party interface clock synchronisation options:-
    Network Module Incoming and Outgoing Clocks
    Word Clock Input
    Word Clock Output
    Video Black Burst In (PAL/SECAM/NTSC formats in Standard Definition (SD) and High Definition (HD) resolutions)
  • Platform-independent web browser configuration interface software hosted on integrated Linux web server
  • Ethernet Control port for remote computer connection (web browser configuration and software updating)
  • 100V-240V universal power supply
  • 1U High 19” rackmount

Specifications:

Front panel

  • 1 x Inlet Air Vent
  • 1 x ETHERNET CONTROL Activity LED (Green)
  • 1 x Pair of green/red Network A Clock Status LED indicators (OK, ERROR)
  • 1 x Asynchronous Sample Rate Converter ASRC ENABLED LED indicator
  • 2 x Network Output “STOP OUTPUT CLOCK IF INPUT FAILS” yellow and red LED indicators (ENABLED, STOPPED)
  • 1 x Pair of green/red Network B Clock Status LED indicators (OK, ERROR)
  • 1 x Backlit Alphanumeric LCD Display (16 characters x 2 Lines
  • 1 x KLARK TEKNIK Tufflex label roundel label with Blue LED illumination

Rear panel

  • 1 x Ethernet Control Port - Neutrik EtherCon with LED status indication
  • 1 x Third Party Network Module Interface (NETWORK MODULE A)
  • 1 x Reset Switch (recessed)
  • 1 x Word Clock Input – Neutrik BNC with 75 ohm termination
  • 1 x Word Clock Output – Neutrik BNC (no termination)
  • 1 x Video Black Burst Input – Neutrik BNC with 75 ohm termination
  • 1 x Third Party Network Module Interface (NETWORK MODULE B)
  • 1 x mains inlet with integral fuseholder and switch
  • 1 x 40 mm fan outlet with finger guard
  • Electrical Safety Earthing Point

Power Requirements

  • Voltage 100V a.c. to 240V a.c. ±10%
  • Frequency 50Hz to 60Hz
  • Consumption <50W

Dimensions

  • Height 1.75" (44.45 mm), 1U high
  • Width 19.0" (482.0 mm)
  • Depth 16.1" (410.0 mm)

Weight

  • Net 12.13lbs
Dante Connectivity PCI Card
Klark Teknik KT-DANTE64 Dante Connectivity PCI Card
The KT-DANTE64 Network Module is a groundbreaking, Ethernet compliant audio networking module, compatible with the KLARK TEKNIK DN9650 and DN9652 Network Bridges.  Using technology developed by Audinate, the KT-DANTE64 Network Module ...
749.99

In Stock
Free Shipping Available
AES50 Network Module
Klark Teknik KTAES50 AES50 Network Module
The Klark Teknik KT-AES50 is a network module with up to 48 bidirectional channels. The KT-AES50 network module provides a dual port AES50 digital audio interface, compatible with both the KLARK TEKNIK DN9650 and DN9652 Network Bridges and ...
349.99

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
MADI Network Module with up to 64 Bidirectional Channels
Klark Teknik KT-MADI MADI Network Module with up to 64 Bidirectional Channels
Featuring up to 64 or 32 bidirectional channels at 48 kHz or 96 kHz respectively, Klark Teknik's KT-MADI network module brings MADI compatibility to the Klark Teknik DN9650 and DN9652 Network Bridges, plus provides ...
229.99

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available

Click to download
