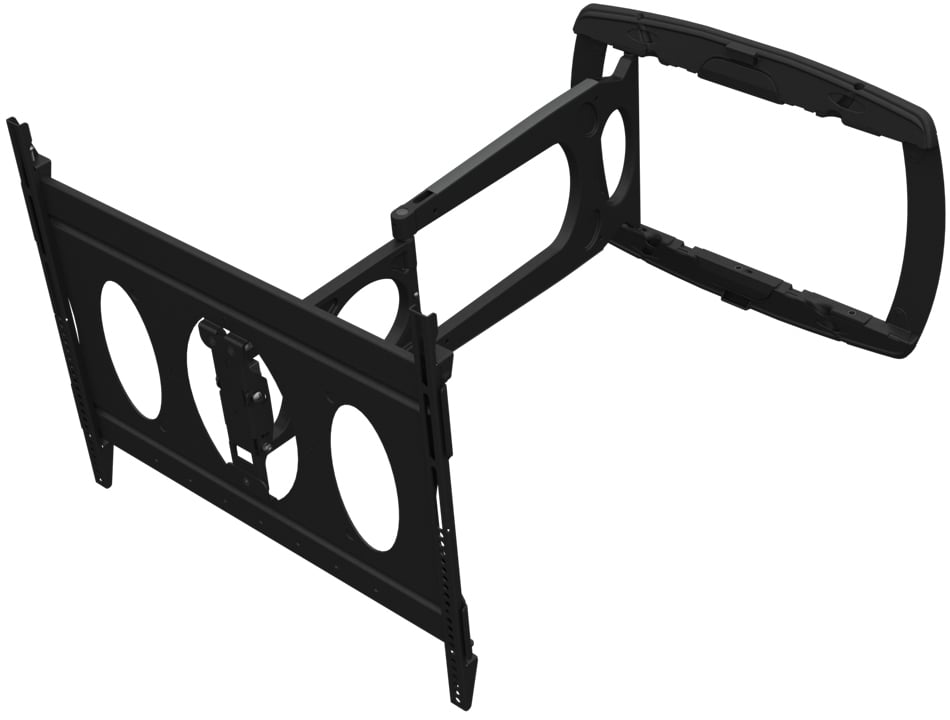

Premier Mounts AM100
Low-Profile Ultra-Slim Swing-Out Mount for Flatscreens, 100 lb. Wt. Cap.

OUR PART #  AM100-PREMIER

Our Price: $370.30
List Price: $529.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Premier Mounts' AM100 is a slim mounting wall plate that provides three options for the swing arm placement, allowing the mount to swing out from the left, right or center, based on the installation requirements.  The swing-out arm extends 30" from the wall and provides 15° of downward tilt to achieve the desired viewing angle from virtually anywhere in a room.  The lightweight aluminum mount retracts smoothly and easily to a very thin 1.5" from the wall.  To keep power and cables protected when pulling or pushing the display, cable management channels are built into the arm.

Features:

  • Designed for today's slimline flat-panels
  • Universal mounting pattern up to 630 x 526 mm
  • Extends 30" from wall
  • 15 degrees of tilt
  • Collapses to just 1.5" deep
  • Low-profile, ultra-thin swing-out flat-panel mount

Specifications:

  • Weight Capacity: 100 lbs (45.5 kg)
  • Depth: 1.5" (38 mm)
  • Mounting Pattern Type: Range
  • Mounting Pattern: 100 x 100 (Min) - 630 x 526 (Max) mm
  • Tilt: +15°
  • Extension: 30" (762 mm)
  • Swivel: 180°

Premier Mounts AM100
Low-Profile Ultra-Slim Swing-Out Mount for Flatscreens, 100 lb. Wt. Cap.

OUR PART #  AM100-PREMIER

Product Information:

Premier Mounts' AM100 is a slim mounting wall plate that provides three options for the swing arm placement, allowing the mount to swing out from the left, right or center, based on the installation requirements.  The swing-out arm extends 30" from the wall and provides 15° of downward tilt to achieve the desired viewing angle from virtually anywhere in a room.  The lightweight aluminum mount retracts smoothly and easily to a very thin 1.5" from the wall.  To keep power and cables protected when pulling or pushing the display, cable management channels are built into the arm.

Features:

  • Designed for today's slimline flat-panels
  • Universal mounting pattern up to 630 x 526 mm
  • Extends 30" from wall
  • 15 degrees of tilt
  • Collapses to just 1.5" deep
  • Low-profile, ultra-thin swing-out flat-panel mount

Specifications:

  • Weight Capacity: 100 lbs (45.5 kg)
  • Depth: 1.5" (38 mm)
  • Mounting Pattern Type: Range
  • Mounting Pattern: 100 x 100 (Min) - 630 x 526 (Max) mm
  • Tilt: +15°
  • Extension: 30" (762 mm)
  • Swivel: 180°
