Sachtler DV 12 SB
100mm Tripod Fluid Head

OUR PART #:  DV12SB

The key to Sachtler’s successful fluid heads is their step switching.
Learn More
Our Price: $3,562.50
List Price: $3,750.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

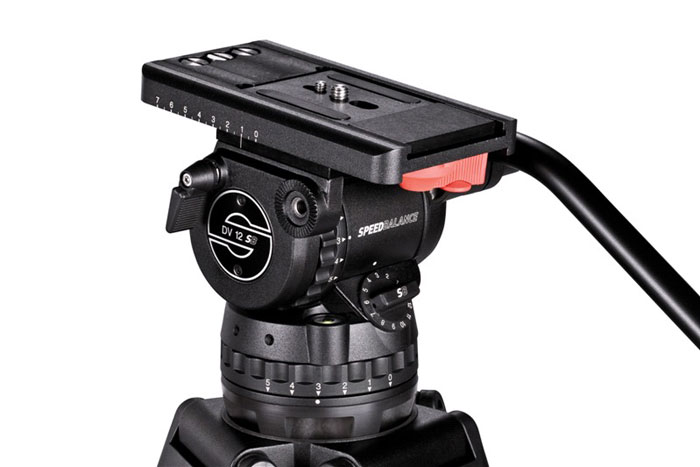

Sachtler DV 12 SB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The key to Sachtler’s successful fluid heads is their step switching. Now their innovative SPEEDBALANCE technology enables even faster and finer counterbalance of your camera system. By reducing the minimum payload, the heads’ overall payload range is increased.

The fluid head DV 12 SB is delivered with the Touch & Go® plate 16 (Code No. 1064). It comes with a 1/4” screw and 3/8” screw. Spare camera screws (1/4”/ 3/8”) and a pin screw are stored in the balance plate. The pin screw fits in the center hole of the camera plate. Thus a pin 1/4” screw connection can be achieved if your camera requires this connection. If your camera remains front- or back heavy after going through the necessary centring procedure you may solve this by using the C.O.G plate (Code No. 1063). This plate offers a removed position.The C.O.G. plate can be mounted to either the front or the back. It cannot be operated with pin and 1/4” screw.

Specifications:

  • Weight: 2.7 kg / 6 lbs
  • Payload: 1 - 14 kg / 2.2 - 31 lbs
  • Sliding range - plate: 70 mm / 2.8 in
  • Counterbalance: in 12 steps
  • Grades of drag: 5 each horizontal and vertical + 0
  • Tilt range: +90/-75°
  • Temperature range: -40° to +60° C / -40 to +140° F
  • Camera fitting: Touch & Go Plate 16
  • Tripod/Pedestal fitting: 100 mm bowl, integrated flat base fitting
  • Pan bar(s): 1, Type DV 100
  • Level: self-illuminating Touch Bubble
  • Batteries Level: 3 x 625U or LR9
  • Adapter viewfinder extension: optional
