Product Overview

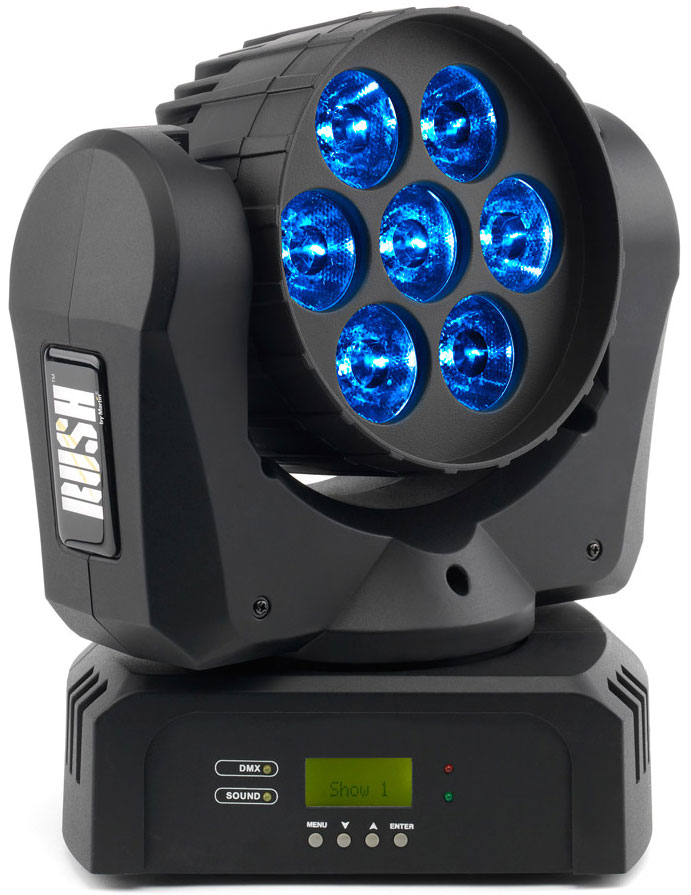

The RUSH MH 2 Wash is a compact yet powerful, fast and agile LED wash light moving head that features RGBW color mixing and a 20° fixed beam angle. Unique wash beam effects are possible via electronic dimming and strobe.
Martin Professional RUSH MH 2 Wash Features:
- LED wash light moving head
- Compact yet powerful
- RGBW color mixing
- 20° fixed beam angle
- Extremely fast and agile
- Electronic dimming and strobe
- 3 & 5 pin XLR
Martin Professional RUSH MH 2 Wash Specifications:
- Length: 10.2 in (258 mm)
- Width: 6.1 in (156 mm)
- Height: 12.0 (305 mm)
- Weight: 12.6 lbs (5.7 kg)
- Dynamic Effects
- Color mixing: RGBW
- Electronic 'color wheel' effect: 33 LEE-referencedcolors plus white, variable-speed color-wheel rotation effect and random color
- Electronic 'shutter' effect: Strobe effect, pulseeffects, instant open and blackout
- Electronic dimming: 0 - 100%, four dimming curveoptions
- Pan: 540°
- Tilt: 270°
- +/- 45° from vertical
- Control and Programming
- Control options: DMX, stand-alone
- DMX channels: 12
- Stand-alone trigger options: Music trig, auto trig
- Stand-alone memory: 20 scenes
- White balance control: RGB adjustment
- Setting and addressing: Control panel with LCD display
- Protocol: USITT DMX512/1990
- Optics
- Beam angle: 20°
- Light source: 7 x 10 W Cree XP-E RGBW LEDs
- Minimum LED lifetime: 50 000 hours (to >70%luminous output)*
- *Manufacturer´s figure obtained under manufacturer´s test conditions
- Construction
- Color: Black
- Housing: High-impact flame-retardant thermoplastic
- Protection rating: IP20
- Installation
- Mounting points: Hex bolts
- Location: Indoor use only, must be fastened to surfaceor structure
- Orientation: Any
- Connections
- AC power in/thru: Neutrik PowerCon
- DMX data in/out: 3-pin and 5-pin locking XLR
- Electrical
- AC power: 100-240 V nominal, 50/60 Hz
- Typical total power consumption: 135 W
- Power consumption figures are typical, not maximum. Allow for +/-10%variation.
- Thermal
- Cooling: Forced air (temperature-regulated, low noise)
- Maximum ambient temperature (Ta max.): 104° F (40° C)
- Minimum ambient temperature (Ta min.): 32° F (0° C)
- Included Items
- Power cable 4.9 ft (1.5 m)
- Ordering Information
- RUSH MH 2 Wash™ in cardboard box: P/N 90280020
