Matrox VS4WCSW
Quad HD-SDI Capture Card with Telestream Wirecast Studio 4 for Windows

OUR PART #:  VS4WCSW

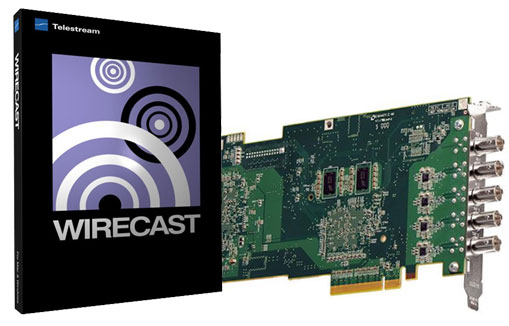

This bundle includes the Matrox VS4 Capture card AND Telestream Wirecast Studio 4 software for the ultimate streaming experience.
Learn More
Our Price: $1,990.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Matrox VS4WCSW
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This bundle includes the Matrox VS4 Capture card AND Telestream Wirecast Studio 4 software for the ultimate streaming experience.  The Matrox VS4 provides up to four independent HD-SDI inputs in a single PCIe slot with up to 8 embedded audio channels per SDI source, taking up an absolute minimum of the precious real estate in your PC.  Letting you take advantage of professional broadcast video and audio sources for the utmost quality in your internet productions.   Telestream’s Wirecast® is the only cross-platform, all-in-one live streaming production software that enables capture, live production, and encoding of live streams for broadcast to multiple servers and platforms simultaneously.

VIRTUAL - Telestream software is not stocked at Full Compass because it is delivered electronically through Telestream (via a download from their web site). Your purchase with us gives you your license number which will be e-mailed to you after the transaction is completed. This is not a "boxed" version of this software.

Matrox VS4 Features:

  • Full-size BNCs connect directly to your cameras.
  • Capture up to four HD-SDI video streams
  • Easy-to-use ISO recording
    Recording all your video feeds is as important as streaming if post-event editing is required. The Matrox VS4 not only sends your video feeds to Wirecast for streaming, it simultaneously records all your original video feeds to disk.
  • The easy-to-use Matrox ISO camera recording tool lets you record using the high-quality Matrox MPEG 2 I-Frame codec at up to 300Mb/s in HD. You can then use Adobe Premiere Pro to natively edit your material.
  • Effortless onsite set-up
    Just hook up your cameras, start Wirecast, and stream. Matrox VS4 automatically detects the presence, resolution, and frame rate of all your inputs so you don’t have to manually set up each source in Wirecast.
  • Because all inputs on Matrox VS4 are independent, you can use HD and SD cameras in the same production.
  • Expandable technology
    Need more than four sources for your production? Simply add a second Matrox VS4 capture card to your system and you’ve increased your setup from 4 to 8 inputs.
  • Extensive audio support
    Matrox VS4 captures up to 8 channels of embedded SDI audio on each input. Using Wirecast, you can choose any stereo pair for your streaming production while simultaneously recording all 8 channels to disk using the Matrox recording tool. You have complete flexibility to go from a simple stereo mix to surround sound for your post-event editing needs.
  • Exceptional quality
    You can expect excellence from Matrox Video Products Group. Our award-winning technology powers a full range of content creation and delivery platforms used by broadcasters, post-production facilities, project studios, corporate communicators and videographers worldwide.
Matrox VS4 Specifications:

Video

  • Supported video formats:
    - NTSC/PAL
    -  720P 50/59.94
    -  1080I 50/59.94
    -  1080P 23.98/24/25/29.97/30
    -  1080PsF 23.98/24/25/29.97/30
  • SDI input:
    -  4 SD or HD input
    -  8 channels of embedded audio
    -  Compliant with SMPTE 259M, SMPTE 272M,SMPTE 292M, SMPTE 299M
    -  BNC connector (75 O), terminated
    -  Equalized input for maximum cable length support

Audio

  • SDI audio input:
    -  8 channels of embedded audio
    -  24-bit, 48 kHz

Software

  • Streaming: Telestream Wirecast Studio and Wirecast Pro
  • Recording: Direct Capture Integration with Telestream Wirecast software

General

  • Dimensions:
    -  ¾ length PCI Express (x8) card
    -  L: 23.2 cm (9.125") × W: 10.7 cm (4.2")
    -  Overall thickness including components 1.9 cm (0.75")
  • Regulatory compliance:
    -  FCC Class A, CE Mark Class A, ACMA Class A
    -  RoHS Directive 2002/95/EC
  • Limited warranty and service: 3-year limited warranty with free telephone support

Electrical and Operating Requirements

  • Power: Total power consumption: 23.0 watts
  • Environmental:
    -  Operating temperature: 0 to 55º C (32 to 131º F)
    -  Storage temperature: -40 to 75º C (-40 to 167º F)
    -  Maximum altitude for operation: 3,000 meters
    -  Maximum altitude for transport: 12,000 meters
    -  Operating humidity: 20 to 80% relative humidity (non-condensing)
    -  Storage humidity: 5 to 95% relative humidity (non-condensing)

Wirecast Software Features:

  • Multiple user-definable layers: Wirecast's multiple layer support allows up to 35 layers of live compositing.
  • Built-in Desktop Presenter: Broadcast the desktop of another computer; perfect for PowerPoint or Keynote presentations, or for broadcasting live interviews using Skype or other chat clients.
  • Incredible titles: More than 30 built-in professional broadcast quality title themes.
  • Chroma key: Transport your production to a new studio or location using Wirecast's high quality GPU accelerated real-time green screen solution.
  • Scoreboards: Use the built-in scoreboard templates to track scores for live action sporting events.
  • Amazing 3D graphics: Generate transitions and effects in real-time, including cross-fade, 3D cube, swinging doors, sliding etc.
  • Virtual sets: Create a virtual TV studio environment with Wirecast's built-in sets.
  • Use built-in multiformat encoding for more flexibility
  • Stream to multiple destinations simultaneously
  • Streaming protocol support:  RTMP, RTSP, MMS (Windows)
  • Live encoding format support:  Quick Time, Flash, Windows Media

Feature Comparison:

Plug in your cameras Wirecast Studio Wirecast Pro
Unlimited number of input sources:
Cameras, capture cards, Desktop Presenter, Live U portable backpack

X

X

Added input sources:
Teradek Cube, IP Cameras, Telestream Pipeline


X

HDV input support

Option

X

Prepare your shots
Powerful production tools:
Lower thirds, transitions, chroma key & more

X

X

Added Pro-level production tools:
Live scoreboards, virtual sets, advanced audio controls


X

Stream Live
Encodes to multiple formats:
WMV, Flash (VP6 & H.264), QT

X

X

Streams to multiple destinations:
Streaming servers, streaming platforms & CDNs, record to disk, Broadcast to external monitors

X

X

Virtual Camera Output (Windows only):
With support for virtual camera output, Wirecast output can be picked up by a device or software that takes a camera source.

X

X
