Draper Shade and Screen 218013

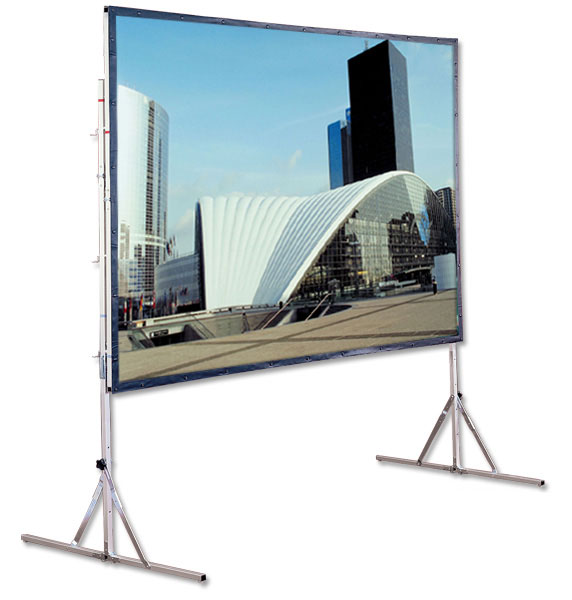

Cinefold Portable Screen w/Legs, 9' x 12'

OUR PART #:  218013

Cinefold is a portable screen that sets up quickly without tools, and collapses into a compact case with wheels for easy travel or storage.
Learn More
Our Price: $935.00
List Price: $1,169.00
You save 20%!
Write the first review.
Draper Shade and Screen 218013
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Cinefold is a portable screen that sets up quickly without tools, and collapses into a compact case with wheels for easy travel or storage. Trainers, presenters, producers, or anyone who takes a show on the road will love Cinefold.

The Cinefold frame and legs are built of 1" (2.5cm) square structural aluminum tubing and are conveniently color-coded and labeled for quick assembly. Steel hardware is cadmium plated. When assembled, the bottom of the frame is normally 44" (112cm) above the floor and adjusts in 6" (15cm) increments. Hinges are tempered steel and lock positively. Frame, legs, viewing surfaces and accessories are all standardized for easy replacements or additions to the system.


  • Carrying Case — Cinefold comes complete with a tough carrying case designed for maximum service and dependability. Constructed using rotationally molded polyethylene, it includes fully integrated handles
    formed into each end of the case and a rubber grip handle recessed into the lid. Each case has two, 1" W x 3" H (2.5cm x 8cm) diameter impact resistant polyolefin wheels molded in the wheel wells. Load capacity is 200lbs (91kg). per wheel. Cases are designed to stack with the lids in place or nest compactly with lids off.
  • T-Legs — Constructed of sturdy 1" (2.5cm) square hard-alloy structural aluminum tubing, clear etched and anodized for long life. Hinged inverted "T" shape, with rubber-tipped feet.
  • Keystone Elimination — T-legs may be adjusted to allow the Cinefold to tilt forward up to 8°. Eases viewing and helps to compensate for image distortion.
  • Hinges & Handy Cranks — Hinges are manufactured of tempered steel, and lock positively into place. Handy Cranks are 5/16" diameter crankbolts, for quick assembly without tools.
  • Viewing Surface - Flexible Matt White for front projection. For rear projection, Cineflex and Low-Gain Cineflex neutral grey surfaces are available. Uniflex White viewing surface is suitable for either
    front or rear projection, and is ideal for edge blending. Surfaces are easily interchangeable. Sizes and formats to meet virtually any specification: custom and truss-style sizes available.


  • Format: 4:3 NTSC/PAL Video Format
  • Diagonal Size: 15'
  • Image Area: 104" x 140"
  • Overall Size: 9' x 12'
  • Shipping Weight: 75 lbs
