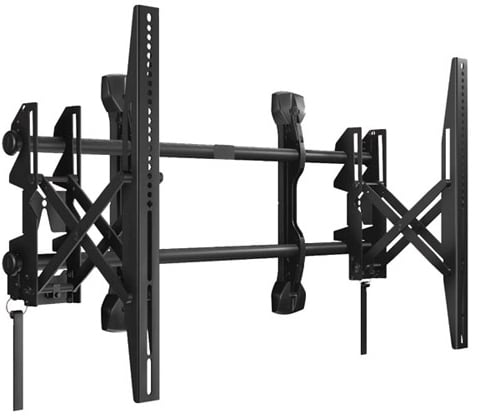

Chief Manufacturing LSMVU
Large FUSION Micro-Adjustable Pull-Out Mount for Video Walls

OUR PART #:  LSMVU

Chief's LSMVU is great for video wall applications, offering easy installation and maintenance for multiple screens.
Learn More

Add to Cart to See Price

Chief Manufacturing LSMVU
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Chief's LSMVU is great for video wall applications, offering easy installation and maintenance for multiple screens.

Features:

  • ControlZone Leveling provides post-installation fine tuning of height and leveling for a seamless installation
  • Centerless Shift provides post-installation lateral shift to easily slide screens apart or together for easy maintenance and perfect alignment
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Allows fine-tuning plumb adjustment to ensure screens are perfectly vertical for a seamless install, can be used to compensate for walls that are not perfectly flat
  • Built-in cable stand provides easy access under the screen
  • Provides integrated security, just add a padlock
  • Can be used with a 2 x 2 video wall matrix or larger

Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 17.5" (444.5 mm)
  • Manual Height Adjustment: 1
  • Maximum Extension: 10.7" (271.8 mm)
  • Minimum Depth: 3.7" (94 mm)
  • Mounting Pattern Compatibility (Universal Versions): 200 x 200 mm - 760 x 505 mm
  • Orientation: Landscape
  • Overall Dimensions: 21.0" H x 34.6" W x 3.7" D (533 x 879 x 94 mm)
  • Plumb Adjustment: 2.5 degrees
  • Post-Installation Leveling (Roll): Yes
  • Shipping Weight: 27.55 lbs
  • Solution Type: Universal
  • Typical Screen Sizes: 37" - 63"
  • Wall Stud Compatibility: 12" - 34"
  • Weight Capacity: 150 lbs (68 kg)
