West Penn D25430

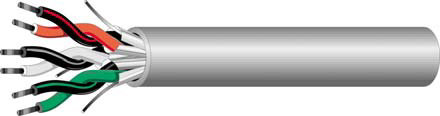

2 Pair 22AWG Plenum-Rated Stranded Shielded Cable

OUR PART #  D25430

Our Price: $348.57
List Price: $583.08
You save 40%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

22 AWG.- 2 PAIR Stranded tinned copper conductors, individually shielded with an overall jacket.

Applications:

  • Intercom
  • Security
  • Sound
  • Audio
  • Background Music
  • Power Limited Control Circuits

Specifications:

Construction

  • Conductor: 22 AWG Tinned Copper
  • Stranding: 7/30
  • Insulation Material: Teflon
  • Insulation Thickness: 0.010'' Nom.
  • Number of Conductors: 4 (2 Pair)
  • Shield Each Pair: 100% Aluminum Foil
  • Drain Stranded: Tinned Copper
  • Jacket Material: Flex Plenum
  • Jacket Thickness: 0.017'' Nom.
  • Overall Cable Diameter: 0.218'' Nom.
  • Approximate Cable Weight: 26 Lbs/1M' Nom.
  • Flame Rating: UL NFPA 262

Electrical & Environmental

  • Temperature Rating: -20°C To +60°C
  • Operating Voltage: 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 25 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz: 45 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 17 Ohms/1M' Nom.
  • Insulation Colors: Black/Red-Red, Black/White-White
  • Jacket Color: Gray
  • RoHS Compliant: Yes

Mechanical

  • Max. Recommended Pull Tension: 55 Lbs.
  • Min. Bend Radius (Install): 2.4”

West Penn D25430
2 Pair 22AWG Plenum-Rated Stranded Shielded Cable

OUR PART #  D25430

Product Information:

22 AWG.- 2 PAIR Stranded tinned copper conductors, individually shielded with an overall jacket.

Applications:

  • Intercom
  • Security
  • Sound
  • Audio
  • Background Music
  • Power Limited Control Circuits

Specifications:

Construction

  • Conductor: 22 AWG Tinned Copper
  • Stranding: 7/30
  • Insulation Material: Teflon
  • Insulation Thickness: 0.010'' Nom.
  • Number of Conductors: 4 (2 Pair)
  • Shield Each Pair: 100% Aluminum Foil
  • Drain Stranded: Tinned Copper
  • Jacket Material: Flex Plenum
  • Jacket Thickness: 0.017'' Nom.
  • Overall Cable Diameter: 0.218'' Nom.
  • Approximate Cable Weight: 26 Lbs/1M' Nom.
  • Flame Rating: UL NFPA 262

Electrical & Environmental

  • Temperature Rating: -20°C To +60°C
  • Operating Voltage: 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 25 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz: 45 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 17 Ohms/1M' Nom.
  • Insulation Colors: Black/Red-Red, Black/White-White
  • Jacket Color: Gray
  • RoHS Compliant: Yes

Mechanical

  • Max. Recommended Pull Tension: 55 Lbs.
  • Min. Bend Radius (Install): 2.4”
