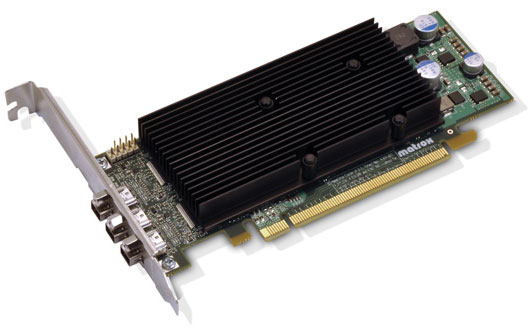

Matrox M9138-E1024LAF
LP PCIe x16 Triple Graphics Card

OUR PART #:  M9138-E1024LAF

The Matrox M9138 LP PCIe x16 triple graphics card renders pristine image quality on up to three DisplayPort™ monitors at resolutions up to 2560 x 1600 per output...
Learn More
Our Price: $395.00
Write the first review.
Matrox M9138-E1024LAF
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Matrox M9138 LP PCIe x16 triple graphics card renders pristine image quality on up to three DisplayPort™ monitors at resolutions up to 2560 x 1600 per output, for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, such as independent and stretched desktop modes, the M9138 drives business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support, and can be paired with another M-Series card for additional monitor support.

Matrox M9138-E1024LAF Includes:

  • Hardware Included:
    • Matrox M9138 LP PCIe x16 graphics card with factory-installed ATX bracket (low-profile bracket in the box)
    • Three miniDP to DP adapters
  • Software Included: CD with link to latest Matrox displaydrivers and PowerDesk desktop management software

Matrox M9138-E1024LAF Features:

  • High-resolution three DisplayPortmonitor support: Support resolutions up to 2560 x 1600 per output
  • Native PCI Express x16 performance: Maximumbandwidth to ensure best performance
  • 1 GB of memory: For enhanced performance in demandingmulti-monitor applications
  • Low-profile form factor:  To fit in a widevariety of systems; includes bracket for full-height ATX form factor
  • Passive cooling and low powerconsumption: Fanless design eliminates noise and increases product reliability
  • Stretched and independent desktop modes: Expandyour desktop across multiple monitors or set each monitor independent of eachother
  • Edge Overlap  (New for Windows 7):  Easilyand intuitively adjust the number of overlapping pixels to create a seamless,unified image on up to eight edge blending projectors.
  • M-Series multi-card support: Add an additionalM-Series card into the same system to drive up to 11 displays from two cards
  • Joined graphics card mode: Insert two M-Seriescards into the same system to drive even more monitors across a stretcheddesktop
  • Matrox Clone: View a copy of one display on theother displays
  • Wide enterprise flexibility: Unified driverpackage compatible with other Matrox products
  • Matrox PowerDesk software: Easily configure andmanage program windows on multiple monitors
  • Multiple operating system support: Display drivers for Windows® 7(32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server2003/2008 (32/64 bit), and Linux

Matrox M9138-E1024LAF Specifications:

  • Part Number: M9138-E1024LAF
  • Bus Type: PCIe x16
  • Graphics Memory: 1024MB
  • Card Form Factor (PCB / bracket): LP / ATX
  • Extra bracket in the box: LP
  • Card Dimensions: 6.6" (L) x 2.7" (H)
  • On-board Connectors: 3 x Mini DisplayPort
  • Adapters: 3 x Mini DisplayPort to DisplayPort
  • Max Display Outputs per Card: 3
  • Supported Display Output Types: DisplayPort ,DVI SL1
  • Max DisplayPort Resolution per Output: 2560x1600
  • Max DVI Resolution per Output: 1920x1200
  • Independent Desktop Mode: Yes
  • Stretched Desktop Mode: Yes
  • Joined Adapter Mode: Yes
  • Matrox Clone: Yes
  • Pivot Support: Yes
  • Passive Cooling: Yes
  • Unified Driver Package: Yes
  • PowerDesk Software: Yes
  • EMC Certifications: Class B
  • Aftermarket Cable/Adapter Upgrades: DisplayPortto DVI-D (DVI Single-Link)
  • Supported Operating Systems: Windows® 7(32/64bit), Windows Vista (32/64bit), Windows XP (32/64bit), Windows Server2003/2008 (32/64bit), and Linux
  • OpenGL support: 2.0
  • Environmental:  ROHS & WEEE compliant
  • Warranty: 3-year Matrox Warranty
