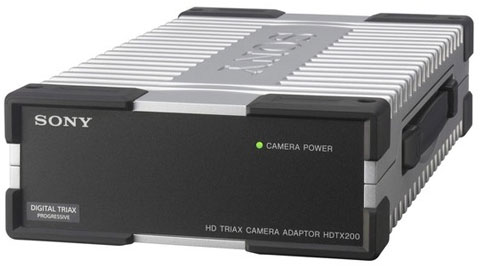

Sony HDTX-200 HD Triax Adaptor

The HDTX-200 field converter box allows a quick change from fibre to triax transmission for HDC-1500 Series or HDC-2000 Series system cameras that do not feature HKC-TR27 digital triax adaptor technology. The HDTX-200 converts the fibre signal to digital triax, allowing the transmission of 1080P or 2xSloMo signals (2x1080i) over triax. Working with the HDFX-200 digital triax adaptor, the HDTX-200 extends a digital triax system to distances of up to 3,700m between the camera and Camera Control Unit (CCU).

Specifications:

• High quality digital signal transmission over conventional triax cable for HDC-1500/2000 fibre cameras: Existing triax infrastructure can be used with no need to install additional cables up to distances of 1,400m.Working with the HDFX-200 digital triax adaptor and HDCU-2000/-2500 Camera Control Unit (CCU), it is possible to extend the reach of the camera system up to a maximum distance of 3,700m between the CCU and the camera.
• Supports wide variety of frame rates: The HDTX-200 supports 1080i, 720P, 2x Slomo1080i/720P HD frame rates, with no limit to the potential frame rates used, future-proofing the investment.
• 2xSloMo speed (1080i or 720P): 2xSloMo signal and normal HDTV signal is available.
• No additional power supply necessary: The HDTX-200 is powered from the HDFX-200 via the triax cable, so no additional power supply to the HDTX-200 is necessary.
