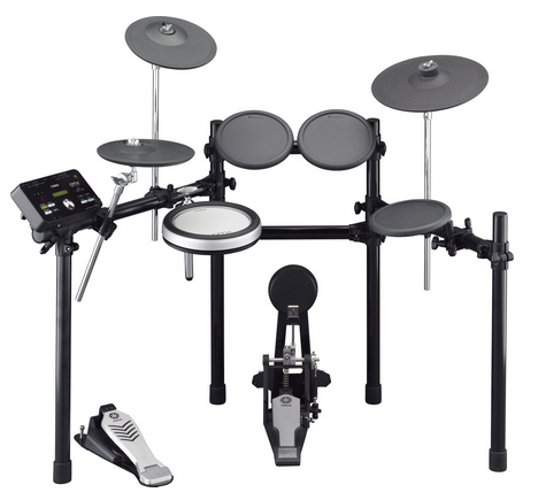

Yamaha DTX522K
Electronic Drum Kit

OUR PART #  DTX522K

Our Price: $799.99
List Price: $2,200.00
You save 64%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Yamaha's DTX522K features their DTX-PAD snare with newly developed tom pads, exclusive 3-zone hi-hat and cymbal pads, plus the incredible sounds and features of the DTX502 module in an affordable kit configuration. Utilizing the DTX-PAD snare for superior stick feel, you can play the head, open rimshot, and closed rimshot voices in each of the three zones for authentic snare expression. This model also features 3-zone operation for the ride, crash and hi-hat. The drums and percussion voices in the DTX502 module lets you sound your absolute best, and with the advanced practice tools and easy song recorder you will be getting better all the time. The USB port allows control over VSTi software and lets you import custom wave files.

The DTX502 has almost twice the wave ROM and over 250 more sounds than its predecessor and features updated drum and cymbal samples from top VST developers that have been optimized for DTX. Also voices inherited from other DTX modules have been updated for improved playability and sound.

Yamaha DTX522K Features:

  • DTX502 Drum Trigger Module
  • Advanced Technology Under The Hood
  • 3-Zone Cymbals with “Choke” Feature Deliver Realistic Expression
  • Updated Practice Functions With Scoring
  • Updated Design Offers Versatile Trigger and Upgrade Options

Yamaha DTX522K Specifications:

  • Trigger Module: DTX502
  • Rack System: RS502
  • Pad Set: DTP522
  • Trigger Module Dimensions:
      -  Width: 251mm
      -  Height: 130 mm
      -  Depth: 48mm
      -  Weight: 610 g
  • Tone generator:
      -  Maximum Polyphony: 32notes
      -  Voices:
         *  Drum and percussion: 691
         *  Melodies: 128
      - Effects:
          *  Reverb:9
          *  Master EQ: 2 bands
     -  Drum kits:
          *  Preset:50
          *  User: 50 (Total memorycapacity of 1MB.)
  • Sequencer:
      -  Note Capacity: Approx. 104,000 Notes(Total memory capacity of 1MB.)
      -  Note Resolution: 96 ppq(parts per quarter note)
      -  Song recording type: Real-timereplace
      -  Song tracks: 1 track
      - Songs:
          *  Demo:1
          *  Practice:37
          *  Pad:22
          *  User: 40
      - Sequence formats:
         *  Proprietary
          *  SMFformat 0/1
  • Click:
      -  Tempo: 30 to 300 BPM, Tap Temposupported.
      -  Beat:
         *  1/4 to 16/4
          *  1/8 to16/8
          *  1/16 to 16/16
     -  Timing:
         *  Accent
          *  Quarternote
          *  Eighthnote
          *  Sixteenthnote
          *  Triplet
      - Training Functions:
          *  GrooveCheck
          *  RhythmGate
          *  MeasureBreak
          *  TempoUp/Down
          *  ChangeUp
          *  PadGate
          *  PartMute
          *  Fast Blast
  • Connectors:
      -  OUTPUT [L/MONO] (Standard monophone)
      -  OUTPUT [R] (Standard mono phone)
     -  Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R:Rim switch)
      -  Trigger inputs 2, 3, 4, 7 (Standard stereophone, L: Trigger, R: Trigger)
      -  HI-HAT CONTROL (Standardstereo phone)
      -  AUX IN (Stereo Mini)
     -  PHONES (Standard stereo phone)
      -  USB TO HOST
  • Accessories:
      -  Power adaptor (PA-130)
     -  Module holder
      -  Module holder fasteningscrews x2
      -  Owner's Manual
  • Audio Import:
      -  Samples: 20 waves (maximum)
     -  Sample Data Bits: 16 bits
      -  Sampling Time *Mono/Stereo: 44.1kHz: 12 sec (mono)
      -  Sampleformats: WAV, AIFF
