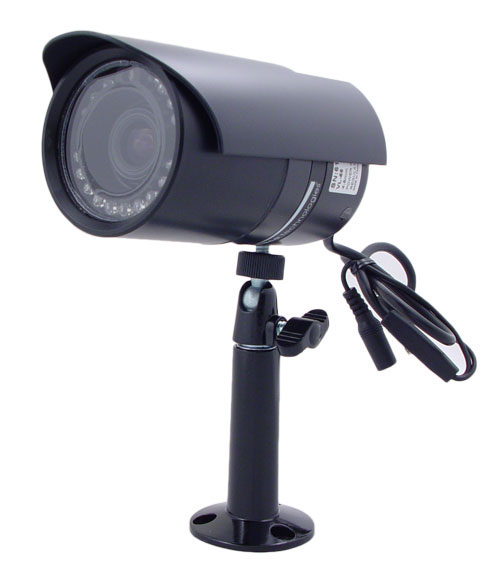

Speco Technologies VL66 Weather Resistant Color IR Camera with Varifocal Lens in Black

OUR PART #: VL66 MFR #: VL66

Copied to clipboard

This Weather Resistant Color IR Camera has a 3.7-12mm auto iris varifocal lens contained within its black housing. A mounting bracket is included with this unit. ...Read more

Speco Technologies VL66 Weather Resistant Color IR Camera With Varifocal Lens In Black Image 1
Speco Technologies VL66 Weather Resistant Color IR Camera With Varifocal Lens In Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

This Weather Resistant Color IR Camera has a 3.7-12mm auto iris varifocal lens contained within its black housing. A mounting bracket is included with this unit.

Features:

  • Extreme weather resistant design is perfect for indoor or outdoor use
  • Up to 50’ IR range (depending on scene reflection)
  • Color by day, BW by night - always get the best possible picture
  • Mounting bracket included for wall, ceiling or pedestal use
  • IP66 compliant
  • 5 year warranty

Specifications:

  • Image Sensor: 1/3” Sony Super-HAD™ II
  • Resolution: 420 TV lines
  • Minimum Illumination: 0 Lux with IR on, 0.5 Lux IR off, F 1.4
  • Built-in Lens: 3.7-12mm
  • Total Pixels: 537 (H) x 505 (V) approx. 270K pixels
  • Effective Pixels: 510 (H) x 492 (V) approx. 250K pixels
  • Iris: Manual
  • Electronic Shutter Speed: 1/60 sec. - 1/100,000 sec.
  • Number of LEDs: 18
  • LED IR Wave Length: 850 nm
  • Effective IR Range: 50’
  • S/N Ratio: More than 48dB
  • Gamma: 0.45 typ.
  • Video Output: 1.0Vp-p, 75 Ohms
  • Scanning System:
    • - 2:1 Interlace, EIA standard 525 line
    • - 60 fields / second
  • Synchronization: Internal
  • Backlight Compensation: Yes
  • AGC: Yes
  • CDS Sensor: Yes
  • Operating Temperature / Humidity: 14° F - 140° F / 30% - 80% RH
  • Storage Temperature: -4° F - 176° F
  • Power Consumption: 300mA
  • Power Supply: 12VDC (power supply included)
  • Housing: Plastic
  • Weight: 1.32 lbs.
  • Included in Package: Mounting bracket
