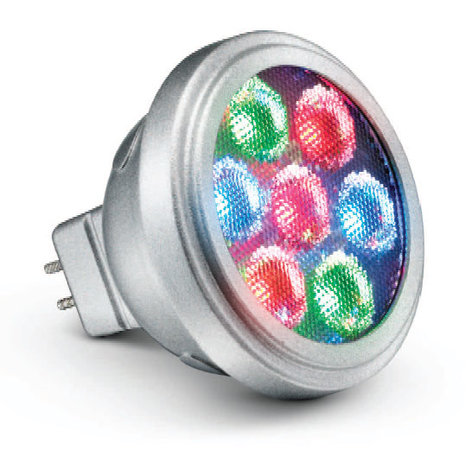

Philips Color Kinetics 101-000074-01
iColor MR gen3 LED Lamp, 30° Beam Angle

OUR PART #  101-000074-01

Our Price: $90.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

iColor MR gen3 is an intelligent color-changing lamp that delivers intense, saturated bursts of color and color-changing effects. The stylish housing fits into most standard MR16 fixtures, including tracks, cables, rails, and pendants. With high-intensity LED light sources and three beam angles, iColor MR gen3 is suitable for a wide-range of architectural, theatrical, and retail applications.

Philips Color Kinetics 101-000074-01 Features:

  • Standard GU5.3 base and two-pin MR16 connector
  • Works with standard 2-conductor jacketed cable or hook-up wire. Power /data supplies specifically designed for use with iColor MR gen3 multiplex power and data onto a two-wire circuit for use with conventional MR16 fixturesand sockets.
  • Use the 17° lamp when you need a spot of light with sharply defined edges,the 30° lamps for a wider spread of light, and the 90° (no optic) lamp for a soft, diffuse light.
  • Easily adaptable to a wide range of interior environments where MR16 fixtures are commonly used. With long useful source life, low power draw of just 5 W, and low-maintenance operation, iColor MR gen3 lamps cost significantly less to own and operate than conventional MR16 lamps.
  • Works seamlessly with the complete Philips Color Kinetics line of controllers, including Light System Manager, iPlayer 3, and ColorDial Pro, as well as third-party controllers.

Philips Color Kinetics 101-000074-01 Specifications:

Output

  • Lumens*: 151
  • LED Channels: Red / Green / Blue
  • Lumen Maintenance†: 100,000 hours L70 @ 40° C 100,000 hours L70 @ 25° C /100,000 hours L50 @ 40° C 100,000 hours L50 @ 25° C

Electrical

  • Input Voltage: 24 VDC from PDS-70mr
  • Power Consumption: 5 W maximum at full output, steady state

Control

  • Interface: PDS-70mr 24V (DMX / Ethernet)
  • Control System: Philips Color Kinetics full range of controllers, including Light System Manager, iPlayer 3, and ColorDial Pro, or third-party controllers

Physical

  • Fixture Connections: Standard 2-pin MR16 connector

Temperature Ranges

  • -4° – 104° F (-20° – 40° C) Operating
  • -4° – 104° F (-20° – 40° C) Startup
  • -40° – 176° F (-40° – 80° C) Storage
  • Humidity 0 – 95%, non-condensing
  • Maximum Fixture Run 14 maximum per PDS-70mr
  • Maximum cable length 50 ft (15 m)

Certification/Safety

  • Certifications: UL / cUL, FCC Class A, CE
  • Environment: Dry Location, IP20

NOTE: Due to continuous improvements and innovations, specifications may change without notice.

* Lumen measurement complies with IES LM-79-08 testing procedures.
† L70 = 70% lumen maintenance (when light output drops below 70% of initial output). L50 = 50% lumen maintenance (when light output drops below 50% of initial output). Ambient luminaire temperatures specified. Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers. Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.

Philips Color Kinetics 101-000074-01
iColor MR gen3 LED Lamp, 30° Beam Angle

OUR PART #  101-000074-01

Product Information:

iColor MR gen3 is an intelligent color-changing lamp that delivers intense, saturated bursts of color and color-changing effects. The stylish housing fits into most standard MR16 fixtures, including tracks, cables, rails, and pendants. With high-intensity LED light sources and three beam angles, iColor MR gen3 is suitable for a wide-range of architectural, theatrical, and retail applications.

Philips Color Kinetics 101-000074-01 Features:

  • Standard GU5.3 base and two-pin MR16 connector
  • Works with standard 2-conductor jacketed cable or hook-up wire. Power /data supplies specifically designed for use with iColor MR gen3 multiplex power and data onto a two-wire circuit for use with conventional MR16 fixturesand sockets.
  • Use the 17° lamp when you need a spot of light with sharply defined edges,the 30° lamps for a wider spread of light, and the 90° (no optic) lamp for a soft, diffuse light.
  • Easily adaptable to a wide range of interior environments where MR16 fixtures are commonly used. With long useful source life, low power draw of just 5 W, and low-maintenance operation, iColor MR gen3 lamps cost significantly less to own and operate than conventional MR16 lamps.
  • Works seamlessly with the complete Philips Color Kinetics line of controllers, including Light System Manager, iPlayer 3, and ColorDial Pro, as well as third-party controllers.

Philips Color Kinetics 101-000074-01 Specifications:

Output

  • Lumens*: 151
  • LED Channels: Red / Green / Blue
  • Lumen Maintenance†: 100,000 hours L70 @ 40° C 100,000 hours L70 @ 25° C /100,000 hours L50 @ 40° C 100,000 hours L50 @ 25° C

Electrical

  • Input Voltage: 24 VDC from PDS-70mr
  • Power Consumption: 5 W maximum at full output, steady state

Control

  • Interface: PDS-70mr 24V (DMX / Ethernet)
  • Control System: Philips Color Kinetics full range of controllers, including Light System Manager, iPlayer 3, and ColorDial Pro, or third-party controllers

Physical

  • Fixture Connections: Standard 2-pin MR16 connector

Temperature Ranges

  • -4° – 104° F (-20° – 40° C) Operating
  • -4° – 104° F (-20° – 40° C) Startup
  • -40° – 176° F (-40° – 80° C) Storage
  • Humidity 0 – 95%, non-condensing
  • Maximum Fixture Run 14 maximum per PDS-70mr
  • Maximum cable length 50 ft (15 m)

Certification/Safety

  • Certifications: UL / cUL, FCC Class A, CE
  • Environment: Dry Location, IP20

NOTE: Due to continuous improvements and innovations, specifications may change without notice.

* Lumen measurement complies with IES LM-79-08 testing procedures.
† L70 = 70% lumen maintenance (when light output drops below 70% of initial output). L50 = 50% lumen maintenance (when light output drops below 50% of initial output). Ambient luminaire temperatures specified. Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers. Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.
