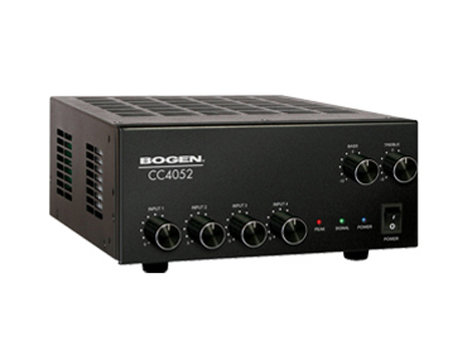

Bogen Communications CC4052
5-Input 40W 70/25V Mixer Amplifier

OUR PART #:  CC4052

These compact mixer-amplifiers provide 40 watts of output power and 5 inputs: 3 balanced MIC/Line, 1 unbalanced AUX, and 1 TEL, each with individual volume controls.
Learn More
Our Price: $209.57
List Price: $245.77
You save 15%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bogen Communications CC4052
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

These compact mixer-amplifiers provide 40 watts of output power and 5 inputs: 3 balanced MIC/Line, 1 unbalanced AUX, and 1 TEL, each with individual volume controls. Features include 2 audio-activated priority muting levels (Input 1 can be disabled), individual phantom power on all MIC inputs, bass and treble controls, peak and signal indicators, and a REC Output.

They are compatible with 70V, 25V, 4-ohm, and 8-ohm speaker systems. The units measure two rack spaces in height, but are only 8-1/4” wide allowing for two units to be placed side-by-side without requiring additional rack spaces. An optional rack mount adapter is available for single and side-by-side configurations.

Bogen Communications CC4052 Features:

  • 40 Watts of output power
  • 5 Inputs for connection to external equipment, plus a 6th Input for built-in Media Player on the CC4052m model
  • Individual phantom power for MIC inputs
  • Input 4 or Media Player selectable for MOH source
  • 2 levels of priority:
    • TEL is 1st priority
    • Input 1 is 2nd priority
  • Audio-activated muting
  • Defeatable muting (Input 1)
  • Bass and treble controls
  • Compatible with 70V, 25V, 4-ohm, and 8-ohm systems
  • REC Output
  • Peak indicator
  • Signal indicator
  • External 24V DC supply input
  • Listed to UL Standard 60065 for US and Canada
  • Optional rack mount adapter (RPK93) available for single and side-by-side configurations (sold separately)

Bogen Communications CC4052 Specifications:

  • Output Power: 40W; 1 kHz @ rated distortion
  • Frequency Response:
    • Balanced LINE/MIC: 100 Hz to 20 kHz; 0/-3 dB
    • Unbalanced Input: 80 Hz to 20 kHz; 0/-3 dB
  • Distortion:
    • Balanced LINE/MIC: < 1% THD+N
    • Unbalanced Input: < 1% THD+N
  • Output Regulation: 2 dBr or better no-load tofull-load
  • Output Impedance: 70V, 25V, 4 ohms, 8 ohms
  • REC Output: 1.14V @ Full Rated Power (FRP)
  • MOH Output (CC4052m only):
    • 8O: 1W @ 130 mV (IN 4);
    • 600O: 2.1V @ 130 mV (IN 4)
  • Maximum Sensitivity:
    • Balanced MIC: 1.15 mVrms (200 ohms)
    • Balanced LINE: 70 mVrms (200 ohms)
    • Unbalanced RCA Input: 70 mVrms (10k ohms)
    • TEL Input: 80 mVrms (600 ohms)
  • Maximum Input Level:
    • Balanced MIC: 100 mVrms
    • Balanced LINE: 6 Vrms
    • Unbalanced Input: 5 Vrms
    • TEL Input: 2.2 Vrms
  • Signal-to-Noise AUX:
    • Fundamental: -74 dBr min. referenced to FRP
    • Balanced MIC: -59 dBr min. referenced to FRP
    • Balanced LINE: -70 dBr min. referenced to FRP
    • Unbalanced Input: -70 dBr min. referenced to FRP
    • TEL Input: -70 dBr min. referenced to FRP
  • Bass &Treble:
    • Bass: +/- 10 dBr @ 100 Hz referenced to mid-band
    • Treble: +/- 10 dBr @ 10 kHz referenced to mid-band
  • VOX Trigger & Muting:
    • Input 1 Trigger Level: 25mV in LINE mode (approx.)
    • VOX Release Delay: 4 (+/- 1) sec.
    • Muting Level: > -60 dBr
  • TEL Trigger & Muting:
    • TEL IN Trigger Level: 22mV (approx.)
    • VOX Release Delay: < 1 sec.
    • Muting Level: > -60 dBr
  • Phantom Power: 12V DC min., 18V DC max.
  • Max. Ambient Temp.: 100°F (non-condensing)
  • Thermal Emissions: 141.5 BTU/hr. (full power)
  • External Supply: 24V DC; 3A
  • Max. Unit Dimensions (WxHxD): 8-1/4” x3-1/2” x 10-3/8”
  • Product Weight: 11 lb.
  • Listings: Listed to UL Standard
